Description

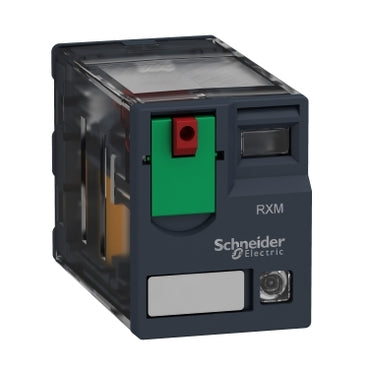

xThis Harmony miniature plug-in relay from Schneider Electric features 4 changeover contacts, rated for 6 A at 250 V AC. It includes an LED indicator and a lockable test button, providing visual feedback and manual operation for testing purposes in control systems.
Specifications
x| IP Rating | IP40 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CE / CSA / CSA C22.2 No 14 / GOST / IEC 61810-1 / IECEE CB Scheme / Lloyd's / UL / UL 508 |
| Temperature: Operating | -40°C to 55°C |
| Part Depth (mm) | 80.5mm |
| Part Height (mm) | 82..8mm |
| Weight (g) | 37g |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Silver Nickel (contacts) |
| Connection Style | 4 C/O |
| Rated Operating Voltage | 96 / 132 VAC |
| Current Rating / Rated Current | 3 A at 28 VDC / 3 A at 250 VAC / 28 VDC / 6 A at 250 VAC / 6 A at 277 VAC / 8 A at 30 VDC |
| Operating Period | 10000000 cycles (Mechanical) / 100000 cycles for resistive load (Electrical) |
| Warranty | 18 Months |
