Description

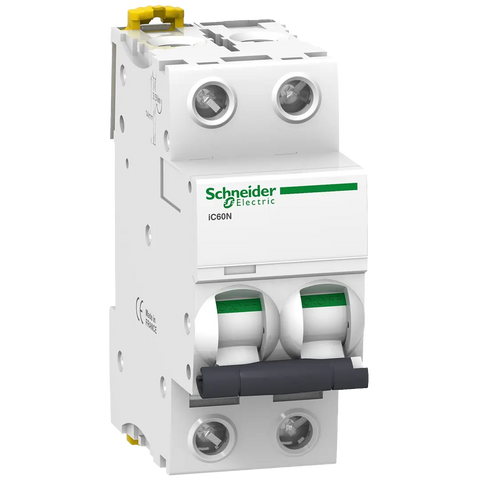

xiC60N circuit breakers are multi-standard circuit breakers which protect against short-circuit and overload currents. Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 400 V and rated current 3A.
This protection is ensured in accordance with the following parameters:
- Number of poles 2P
- Rated breaking capacity 6000 A
- Tripping curve D
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-2,IEC 60898-1,EN 60947-2,EN 60898-1 |
| Temperature: Operating | -35…70 °C |
| Part Depth (mm) | 78.5mm |
| Part Width (mm) | 36mm |
| Part Length (mm) | 14mm |
| Part Height (mm) | 85mm |
| Tightening Torque (N.m) | 2 Nm |
| Connection Type | Single terminal (top or bottom) 1…25 mm² rigid,Single terminal (top or bottom) 1…16 mm² flexible |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC,AC |
| Mounting Type | Fixed |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 10000 cycles |
| Colour | White |
