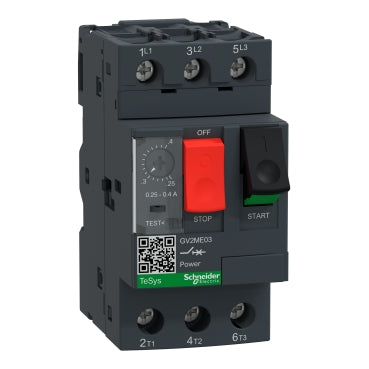

Schneider Manual starter and protector, 3-pole, 0.25 - 0.40A

This motor circuit breaker combines thermal and magnetic trip technology with a rated current of 0.4 A, protecting motors up to 0.09 kW at 400 V AC. It features push-button operation for motor control.
Vendor: Schneider Electric
SKU: GV2ME03
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This motor circuit breaker combines thermal and magnetic trip technology with a rated current of 0.4 A, protecting motors up to 0.09 kW at 400 V AC. It features push-button operation for motor control.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsATEX / BV / CCC / CSA / DNV-GL / EAC / LROS (Lloyds Register of Shipping) / RINA / UL / UKCA
Temperature: Operating-20 °C to 60 °C
Part Depth (mm)78.5mm
Part Width (mm)45mm
Part Height (mm)89mm
Weight (g)260g
Packaging size / unit1 pc(s) / 24 pc(s) / 384 pc(s)
Tightening Torque1.7 Nm
Max Frequency50/60 Hz conforming to IEC 60947-4-1
Type of VoltageAC
Rated Operating Voltage690 VAC 50/60 Hz conforming to IEC 60947-2
Mounting Type35 mm symmetrical DIN rail: clipped / Panel: screwed (with adaptor plate)
Current Rating / Rated Current0.4 A
Operating Period100000 cycles (mechanical) / 100000 cycles (electrical)
Warranty18 Months
ColourDark grey
Documents
Documents
x
Download Datasheet
