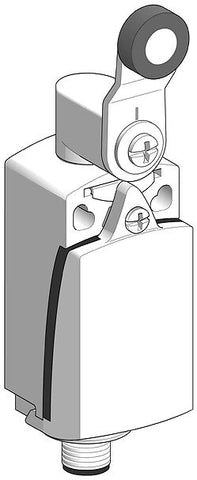

xThe XCKD is a compact limit switch with a thermoplastic roller lever on a rotary head, fitted with 1 NC + 1 NO contacts operating by snap action. The body and head are constructed in Zamak, fixed by the body, and actuation occurs via a 30° cam with lateral approach from two directions. Electrical connection is made through an M12, 5-pin male connector, and the device is suited to compact machine and equipment designs where position or end-of-travel detection is required within a control panel or automated system.
Key specifications
- Material: Metal
Specifications
x| Range of product: | Telemecanique Limit switches XC Standard |
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKD |
| Sensor design: | Compact form A conforming to CENELEC EN 50047 |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return roller lever thermoplastic |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
Details
| Tracks: | 24/40 mm |
| Switch actuation: | By 30° cam |
| Electrical connection: | Male connector M12, 5 pins |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum torque: | 0.25 N.m |
| Minimum torque for tripping: | 0.1 N.m |
| Maximum actuation speed: | 1.5 m/s |
| Repeat accuracy: | 0.1 mm on the tripping points with 1 million operating cycles |
| [Ie] rated operational current: | 3 A at 50 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 4 A |
| [Ui] rated insulation voltage: | 60 V (pollution degree 3) conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 0.8 kV conforming to IEC 60664 |
| Short-circuit protection: | 4 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 24 V, 10 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 31 mm |
| Height: | 65 mm |
| Depth: | 30 mm |
| Product weight: | 0.22 kg |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Specific application: | Compact variable |
Additional Information
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection: | IK06 conforming to EN 50102 |
| Electrical shock protection class: | Class I conforming to IEC 61140 |
| Ambient air temperature for operation: | -25 to 70 °C |
| Ambient air temperature for storage: | -40 to 70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCSACCC |
| Standards: | UL 508, EN 60947-5-1, IEC 60947-5-1, IEC 60204-1, CSA C22.2 No 14, EN 60204-1 |
