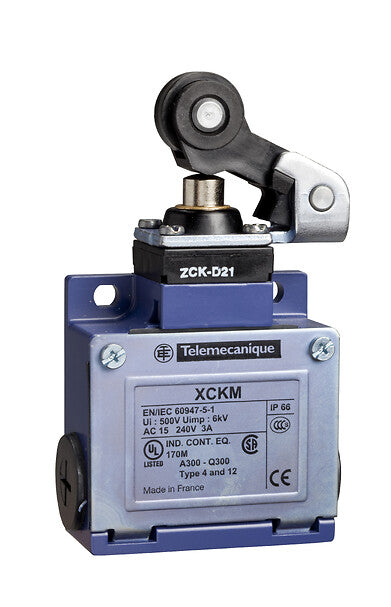

xThis is a snap-action limit switch from the Schneider Electric Telemecanique XC Standard range, featuring a spring return roller lever plunger operator with linear movement, actuated laterally by a 30° cam. It provides 1NC + 1NO contacts across 2 poles, with positive opening and screw-clamp terminals accepting an M20 x 1.5 cable gland entry. The zamak body offers IP66 and IK05 protection, suiting use in exposed or washdown areas of industrial machinery, with an operating temperature range of -25 to 70 °C.
Key specifications
- Rated voltage: 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14
- Material: metal
Specifications
x| Weight (in Kg) | 0.308 |
| Net weight | 0.3 kg |
| Product Or Component Type | limit switch |
| Ambient air temperature for operation | -25 to 70 °C |
| Length | 30 |
| Contact Operation | snap action |
| Conventional Enclosed Thermal Current | 10 A AC |
| Mechanical Durability | 20000000 cycles |
| Positive Opening | with |
| Protective Treatment | TC |
| Short-circuit Protection | 10 A cartridge fuse, type gG |
| Type Of Operator | spring return roller lever plunger thermoplastic |
| Series Name | standard format |
| Head Type | plunger head |
| IK Degree Of Protection | IK05 conforming to EN 50102 |
| Number Of Poles | 2 |
| Material | metal |
| IP Degree of Protection | IP66 conforming to EN/IEC 60529 |
| Body Material | zamak |
| Contacts Insulation Form | Zb |
| Contacts Type and Composition | 1 NC + 1 NO |
| Maximum Actuation Speed | 1.5 m/s |
| Minimum Actuation Speed | 0.01 m/min |
| Minimum force for tripping | 8 N |
| Movement of Operating Head | linear |
| Number of Steps | 1 |
| Positive Opening Minimum Force | 24 N |
| Switch Actuation | by 30° cam |
| Type of approach | lateral approach, 1 direction |
| Standards | IEC 60947-5-1, EN 60204-1, CSA C22.2 No 14, IEC 60204-1, UL 508, EN 60947-5-1 |
| Electrical Durability | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Rated impulse withstand voltage | 6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1 |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A; Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A |
| Electrical Shock Protection Class | class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Terminals Description Iso N°1 | (13-14)NO, (21-22)NC |
| Product Certifications | CCC, CSA, UL |
| Rated Insulation Voltage | 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to IEC 60947-1, 300 V conforming to CSA C22.2 No 14 |
| Ambient air temperature for storage | -40 to 70 °C |
| Compatibility code | XCKM |
| Depth | 30 mm |
| Device short name | XCKM |
| Fixing Mode | by the body |
| Height | 64-64 mm |
| Range of Product | Telemecanique Limit switches XC Standard |
| Shock Resistance | 50 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Vibration Resistance | 25 gn (f= 10-500 Hz) conforming to EN/IEC 60068-2-6 |
| Width | 64 mm |
| Cable entry | 3 entries tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Electrical Connection | screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Maximum Resistance Across Terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Body Type | fixed |
