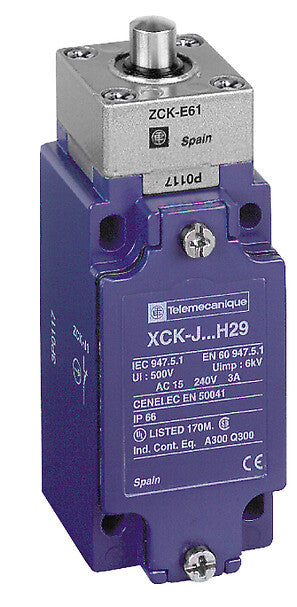

Schneider Limit switch, metal end plunger, 1NC + 1NO Part number XCKJ161H29

This limit switch uses a metal end plunger actuator to detect the position or presence of moving machine parts, providing 1NC + 1NO contact configuration for simultaneous switching outputs. It is used in industrial automation systems to signal end-of-travel or object detection to a control system. Typical applications include machine...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This limit switch uses a metal end plunger actuator to detect the position or presence of moving machine parts, providing 1NC + 1NO contact configuration for simultaneous switching outputs. It is used in industrial automation systems to signal end-of-travel or object detection to a control system. Typical applications include machine guarding, conveyor systems and position sensing within panels and equipment where mechanical actuation is required.

Specifications
Specifications
x
Product data sheetXCKJ161H29
Switch actuationOn end
Contacts insulation formZb
Number of steps1
Positive openingWith
Positive opening minimumforce 50 N
Minimum force for tripping20 N
Maximum actuation speed0.5 m/s
Repeat accuracy0.1 mm on the tripping points with 1 million operating cycles
[Ie] rated operational current3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosedthermal current 10 A
[Ui] rated insulation voltage300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
Maximum resistance acrossterminals 25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstandvoltage 6 KV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse, type gG
Mechanical durability30000000 cycles
Width40 mm
Jul 30, 20241
Height77 mm
Depth44 mm
Net weight0.43 kg
Terminals description ISO n°1(13-14)NO (21-22)NC
Shock resistance50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK07 conforming to IEC 62262
Overvoltage categoryClass I conforming to IEC 61140 Class I conforming to NF C 20-030
Ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…70 °C
Protective treatmentTH
Product certificationsCSA[RETURN]UL[RETURN]CCC
StandardsIEC 60204-1 IEC 60947-5-1 CENELEC EN 50041 UL 508 IEC 60204-1 CSA C22.2 No 14 IEC 60947-5-1
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height4.300 cm
Package 1 Width6.900 cm
Package 1 Length13.000 cm
Package 1 Weight425.000 g
Unit Type of Package 2S02
Number of Units in Package 218
Package 2 Height15.000 cm
Package 2 Width30.000 cm
Package 2 Length40.000 cm
Package 2 Weight7.985 kg
