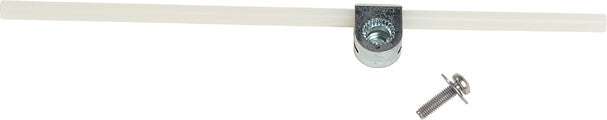

The ZCY59 is a lever accessory from the OsiSense XC Standard range, fitted with a spring-return thermoplastic round rod measuring 6 mm by 200 mm. It mounts onto limit switch heads such as the ZCE01 and ZCE05, and is compatible with XCKT, XCKD, XCKP and XCMD switch bodies, producing rotary head movement via lateral approach and actuation by any moving part. It is designed for standard environments, with an operating temperature range of -25 to 70°C, suiting general machine and control panel limit-switching applications.
| Part Number | ZCY59 |
| Product Type | Limit Switch Lever |
| Series | OsiSense XC Standard |
| Device Short Name | ZCY |
| Product Compatibility | XCKT, XCKD, XCKP, XCMD |
| Associated Head | ZCE01, ZCE05 |
| Type of Operator | Rod lever spring return thermoplastic round rod 6 mm, L = 200 mm |
| Movement of Operating Head | Rotary |
| Type of Approach | Lateral approach |
| Switch Actuation | By any moving part |
| Positive Opening | Without |
| Ambient Air Temperature for Operation | -25 to 70 °C |
| Ambient Air Temperature for Storage | -40 to 70 °C |
| Environmental Characteristic | Standard environment |
| Sustainable Offer Status | Green Premium Product |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
| RoHS Exemption Information | Yes |
| REACH Regulation | REACh Declaration |
| REACH Free of SVHC | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
