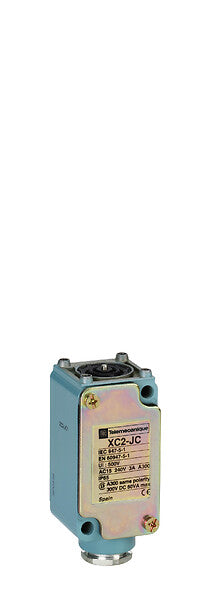

Schneider Limit switch head, w/o display, fixed, 1 c/o Part number ZC2JC1

The ZC2JC1 is a fixed limit switch body from the OsiSense XC Standard series, fitted with a single changeover (1 C/O) snap-action contact with silver-plated contacts. It has a metal body with a tapped entry for a Pg 13.5 cable gland, and connects via screw-clamp terminals. The body is designed...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The ZC2JC1 is a fixed limit switch body from the OsiSense XC Standard series, fitted with a single changeover (1 C/O) snap-action contact with silver-plated contacts. It has a metal body with a tapped entry for a Pg 13.5 cable gland, and connects via screw-clamp terminals. The body is designed for use with a range of ZC2JE series heads and offers IP65 and IK08 protection, suiting installation in industrial environments where position or end-of-travel detection is required on machinery.

Specifications
Specifications
x

Limit Switch Body ZC2J Fixed 1C/O – ZC2JC1

Product Overview

Part NumberZC2JC1
Product TypeLimit Switch Body
SeriesOsiSense XC Standard
Device Short NameZC2J
Body TypeFixed
Product CompatibilityXC2J
Associated HeadsZC2JE01, ZC2JE02, ZC2JE03, ZC2JE05, ZC2JE09, ZC2JE61, ZC2JE62, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70
Body MaterialMetal
Cable Entry1 tapped entry for Pg 13.5 cable gland (included)
Number of Poles1
Contacts Type and Composition1 C/O (SPDT)
Contact OperationSnap Action
Contacts MaterialSilver Plated Contacts

Complementary

Local DisplayWithout
Electrical ConnectionScrew-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive OpeningWithout
Minimum Actuation Speed0.01 m/min
Rated Operational Current [Ie]3 A at 240 V AC (AC-15, A300), 0.27 A at 250 V DC (DC-13, Q300)
Conventional Enclosed Thermal Current [Ithe]10 A
Rated Insulation Voltage [Ui]500 V (IEC 60947-1), 300 V (CSA C22.2 No 14)
Maximum Resistance Across Terminals0.25 mΩ (IEC 60255-7 category 3)
Short-circuit Protection10 A cartridge fuse, type gG
Electrical Durability5,000,000 cycles (DC-13 24 V, 10 W, operating rate <60 cycles/min, load factor: 0.5)

Dimensions & Weight

Width40 mm
Height81 mm
Depth41 mm
Net Weight0.355 kg

Environment

IP Degree of ProtectionIP65
IK Degree of ProtectionIK08
Ambient Air Temperature for Operation-25 to 70 °C
Ambient Air Temperature for Storage-40 to 70 °C
Environmental CharacteristicStandard Environment
