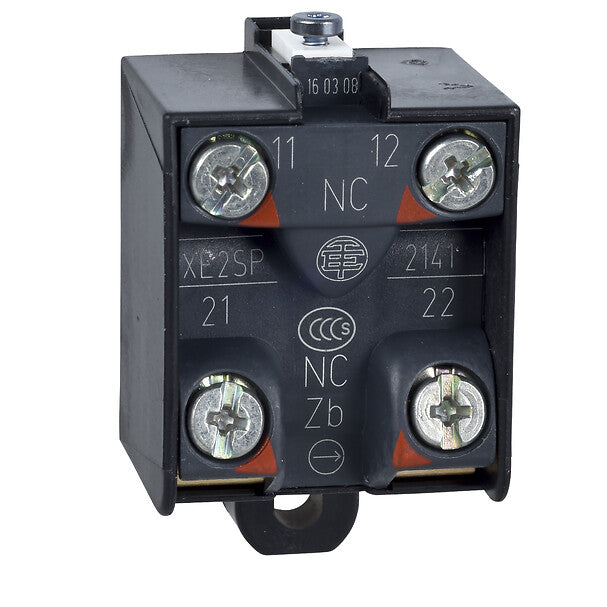

Schneider Limit switch contact block, 2-pole, 2NC Part number XE2SP2141

This contact block provides two normally closed contacts for use with limit switch heads in position sensing applications. It mounts to a compatible limit switch body to signal machine or actuator position within a control circuit. Typical use is in control panels and machine interlocking systems where mechanical position detection...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x

This contact block provides two normally closed contacts for use with limit switch heads in position sensing applications. It mounts to a compatible limit switch body to signal machine or actuator position within a control circuit. Typical use is in control panels and machine interlocking systems where mechanical position detection is required.

Specifications
Specifications
x
Product data sheetXE2SP2141
Product compatibilityXCKM XCKJ XCKP XCKS XCKD
Contacts insulation formZb
Contacts materialSilver plated contacts
Positive openingWith
Minimum actuation speed0.01 mm/s
Maximum resistance acrossterminals 25 mOhm conforming to IEC 60255-7 category 3
[Ui] rated insulation voltage300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstandvoltage 6 KV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse, type gG
Dec 18, 20241
Packaging without single use plasticNo
Packaging made with recycledcardboard No
Circularity ProfileNo need of specific recycling operations
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Height3.000 cm
Package 1 Width7.000 cm
Package 1 Length6.000 cm
Package 1 Weight21.000 g
Unit Type of Package 2S02
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight2.312 kg
Documents
Documents
x
Download Datasheet
