Schneider Limit switch contact block, 2-pole, 1NC + 1NO Schneider Electric
Schneider Limit switch contact block, 2-pole, 1NC + 1NO Schneider Electric

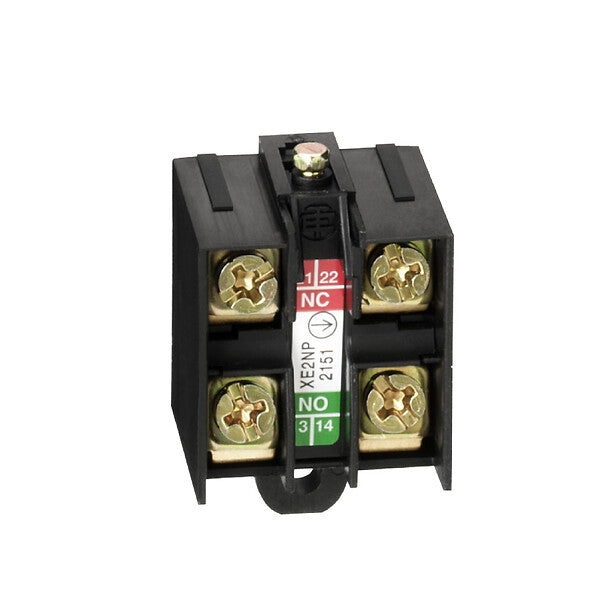

Schneider Limit switch contact block, 2-pole, 1NC + 1NO Part number XE2NP2151

This limit switch contact block provides 2-pole switching with a 1NC + 1NO configuration, intended for use with compatible limit switch bodies or heads. It converts mechanical actuation into electrical signals for position sensing or end-of-travel detection within a control circuit. Typical applications include machine guarding, actuator feedback and process...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

This limit switch contact block provides 2-pole switching with a 1NC + 1NO configuration, intended for use with compatible limit switch bodies or heads. It converts mechanical actuation into electrical signals for position sensing or end-of-travel detection within a control circuit. Typical applications include machine guarding, actuator feedback and process interlocking within industrial control panels.

Specifications
Specifications
x
Product data sheetXE2NP2151
Product compatibilityXCKD XCKS XCR XCKJ XCKL XCKM XCKP
Contacts insulation formZb
Contacts materialSilver plated contacts
Positive openingWith
Minimum actuation speed6 m/min
Maximum resistance acrossterminals 25 mOhm conforming to IEC 60255-7 category 3
[Ui] rated insulation voltage300 V conforming to UL 508 500 V (pollution degree 3) conforming to IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstandvoltage 6 KV conforming to IEC 60664 6 kV conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse, type gG
Jul 30, 20241
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Height3.300 cm
Package 1 Width4.700 cm
Package 1 Length5.800 cm
Package 1 Weight21.000 g
Unit Type of Package 2S01
Number of Units in Package 250
Package 2 Height15.000 cm
Package 2 Width15.000 cm
Package 2 Length40.000 cm
Package 2 Weight1.362 kg
Documents
Documents
x
Download Datasheet
