The ZCMD21M12 is a miniature limit switch body from the OsiSense XC Standard series, fitted with a Zamak housing and a snap-action 2-pole, 1 C/O contact block with silver-plated contacts. It connects via an M12, 4-pin male connector and is designed for use with a range of separate actuator heads,...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The ZCMD21M12 is a miniature limit switch body from the OsiSense XC Standard series, fitted with a Zamak housing and a snap-action 2-pole, 1 C/O contact block with silver-plated contacts. It connects via an M12, 4-pin male connector and is designed for use with a range of separate actuator heads, allowing configuration to suit different mounting and sensing requirements. With a degree of protection of IP66/IP67 and an operating temperature range of -25 to 70°C, it is suited to end-of-travel and position detection tasks on machinery and control panels in demanding industrial environments.

Specifications
Specifications
x

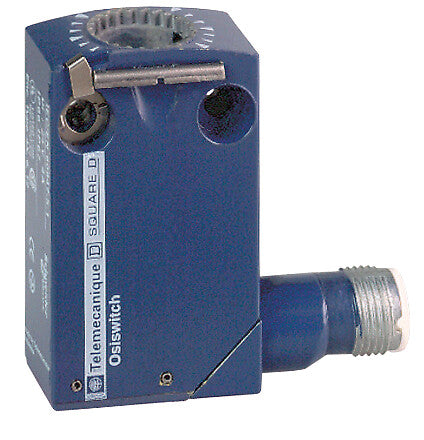

Limit Switch Body ZCMD 1C/O Silver Snap Action Connection M12 – ZCMD21M12

Product Overview

Part NumberZCMD21M12
Product TypeLimit Switch Body
SeriesOsiSense XC Standard
Device Short NameZCMD
DesignMiniature
Body TypeFixed
Body MaterialZamak
Number of Poles2
Contacts Type and Composition1 C/O (SPDT)
Contact OperationSnap Action
Electrical ConnectionMale Connector M12, 4 Pins
Associated HeadsZCE29, ZCE02, ZCE06, ZCE62, ZCE09, ZCE13, ZCE67, ZCE10, ZCE14, ZCE07, ZCE08, ZCE65, ZCEG1, ZCEF0, ZCE24, ZCE11, ZCE27, ZCE64, ZCEF2, ZCE28, ZCE66, ZCE01, ZCE63, ZCE21

Complementary

Product CompatibilityXCMD
Contacts Insulation FormZa
Contacts MaterialSilver Plated Contacts
Positive OpeningWithout
Minimum Actuation Speed0.01 m/min
Rated Operational Current [Ie]0.1 A at 250 V DC-13, 1.5 A at 240 V AC-15
Conventional Enclosed Thermal Current [Ithe]3 A
Rated Insulation Voltage [Ui]300 V (UL 508, CSA C22.2 No 14), 250 V (IEC 60947-5-1)
Maximum Resistance Across Terminals25 mΩ (IEC 60255-7 Category 3)
Rated Impulse Withstand Voltage [Uimp]2.5 kV (IEC 60664, IEC 60947-1)
Short-Circuit Protection4 A Cartridge Fuse, Type gG
Electrical Durability5,000,000 cycles (DC-13 24 V, 3 W, operating rate <60 cycles/min, load factor: 0.5)

Dimensions & Weight

Width30 mm
Height50 mm
Depth16 mm
Net Weight0.065 kg

Environmental Specifications

Ambient Air Temperature for Operation-25 to 70 °C
Ambient Air Temperature for Storage-40 to 70 °C
Degree of ProtectionIP66/IP67
