Description

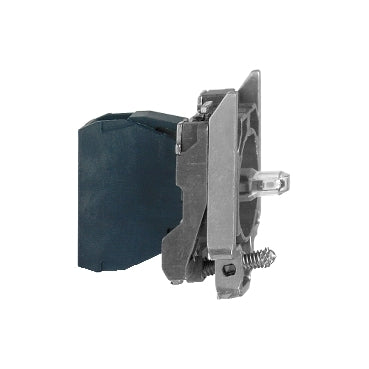

xThis green light block assembly operates on 230–240 V AC and includes an integral LED for consistent signaling. Its metal body, screw clamp terminals, and Zamak collar make it robust for high-demand environments.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / GL / JIS C8201-1 UL listed / JIS C8201-5-1 / LROS (Lloyds Register of Shipping) / UL 508 |
| Temperature: Operating | -40°C to 70 °C |
| Part Depth (mm) | 37mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 54g |
| Packaging size / unit | 1 / 200 / 1600 pc(s) |
| Tightening Torque | 0.8 to 1.2 N.m |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 230...240 VAC at 50/60 Hz |
| Current Consumption | 14 mA |
| Warranty | 18 Months |
| Colour | Green |
