Description

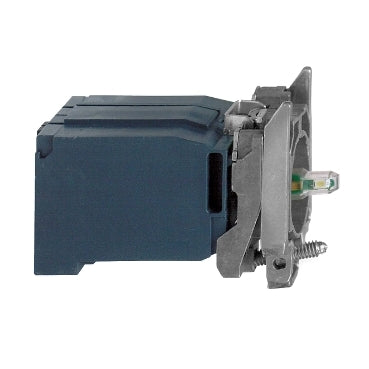

xThis light block with metal body and fixing collar accepts a BA9s bulb and is designed for mounting on control panel doors and enclosures as part of a pilot light assembly. It has an IP20 rating and an operating temperature range of -40 to 70°C, suitable for a variety of industrial environments. Connections are made via screw clamp terminals accepting cable ends up to 2 x 1.5 mm², tightened with a Philips no 1 screwdriver, and the unit is rated for a supply voltage of 400 V AC at 50/60 Hz.
Key specifications
- IP rating: IP20
- Connection: Screw clamp terminals, <= 2 x 1.5 mm² with cable end
- Operating temperature: -40…70 °C
- Colour: White
Specifications
x| IP Rating / Detailed | IP20 |
| Compliance/Certifications | UL 508,JIS C8201-5-1,IEC 60947-5-1,IEC 60947-5-5,IEC 60947-5-4,IEC 60947-1,CSA C22.2 No 14,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Screw Type | Cross compatible with Philips no 1 screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end |
| Supply Voltage | 400 V AC at 50/60 Hz |
| Colour | White |
