Description

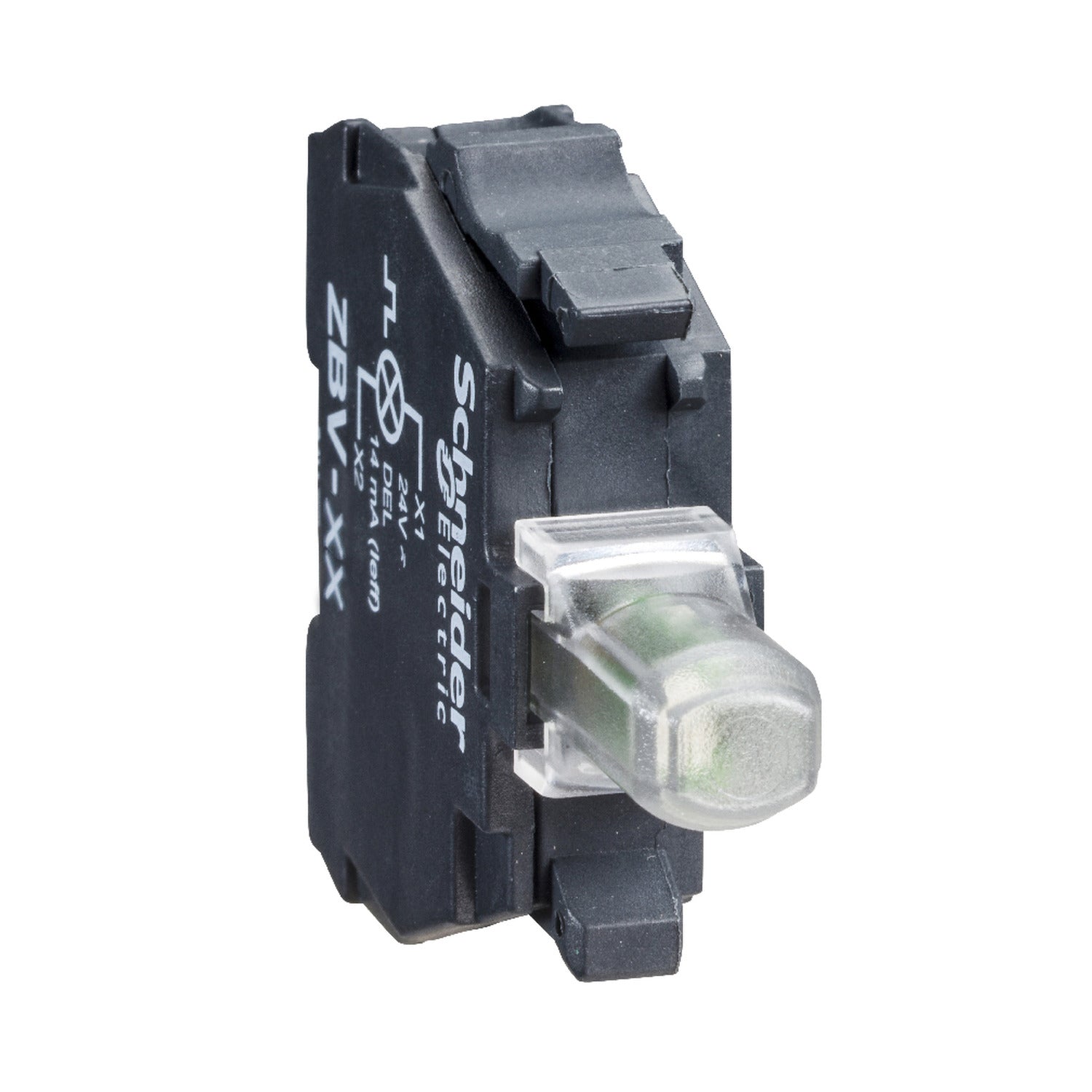

xThis light block is designed for mounting behind a Ø22mm pilot head to provide red indication on control panels and machine interfaces. It operates from a 230...240 V AC supply at 50/60 Hz, drawing 14 mA, and connects via screw clamp terminals accepting a single 0.22 mm² conductor without a cable end, tightened using a Philips no 1, pozidriv no 1, or flat-blade screwdriver of 4 mm or 5.5 mm. With an IP20 rating and an operating temperature range of -40 to 70°C, it suits enclosed panel applications where standard ingress protection is sufficient.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to EN 60947-1
- Operating temperature: -40…70 °C
- Colour: Red
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-5-5,UL 508,EN/IEC 60947-5-1,EN/IEC 60947-1,CSA C22.2 No 14,JIS C8201-5-1,EN/IEC 60947-5-4,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 230...240 V AC at 50/60 Hz |
| Current Consumption | 14 mA |
| Colour | Red |
