Description

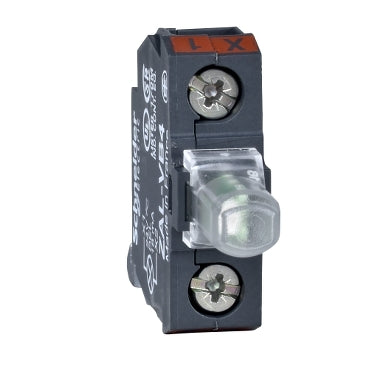

xThis light block is designed for fitting to a Ø 22mm panel head, providing red illumination for indication on control panels. It operates at 230-240V AC with a current consumption of 14 mA, and connects via screw clamp terminals compatible with pozidriv or slotted screwdrivers. The IP20 rated enclosure and -40…70°C operating temperature range suit it to industrial control panel and machine interface applications.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
- Operating temperature: -40…70 °C
- Colour: Red
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-5-1,JIS C8201-5-1,UL 508,EN/IEC 60947-1,EN/IEC 60947-5-4,CSA C22.2 No 14,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Supply Voltage | 230...240 V AC |
| Current Consumption | 14 mA |
| Colour | Red |
