Description

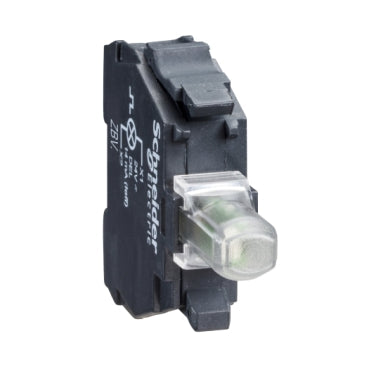

xThis is a yellow light block for a Ø22 head fitting, incorporating an integral LED for illuminated indication on control panel devices. It operates from a 24 V AC/DC supply at 50/60 Hz, drawing 18 mA, and connects via screw clamp terminals accepting a single 0.22 mm² conductor. Rated IP20 and suited to operating temperatures from -40 to 70 °C, it is intended for panel-mounted signalling and pushbutton stations in industrial control applications.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to EN 60947-1
- Operating temperature: -40…70 °C
- Colour: Yellow
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-5-1,JIS C8201-5-1,CSA C22.2 No 14,EN/IEC 60947-1,UL 508,EN/IEC 60947-5-4,EN/IEC 60947-5-5,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 24 V AC/DC at 50/60 Hz |
| Current Consumption | 18 mA |
| Colour | Yellow |
