Description

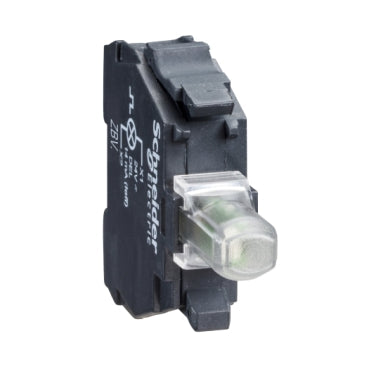

xThis light block is designed for mounting on a Ø22 head to provide steady red illumination on control panels and machine interfaces. It operates on a 24...120 V AC/DC supply at 50/60 Hz and connects via screw clamp terminals, allowing straightforward wiring into control circuits. With an IP20 rating and an operating temperature range of -40 to 70°C, it is suited to enclosed panel environments across varying ambient conditions.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
- Operating temperature: -40…70 °C
- Colour: Red
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | JIS C8201-5-1,IEC 60947-1,IEC 60947-5-4,UL 508,IEC 60947-5-1,CSA C22.2 No 14,IEC 60947-5-5,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 24...120 V AC/DC at 50/60 Hz |
| Colour | Red |
