Description

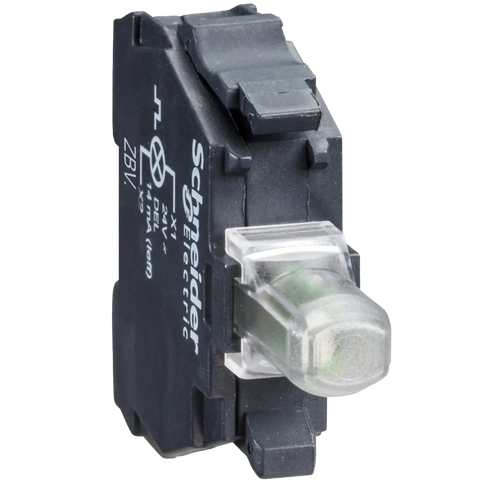

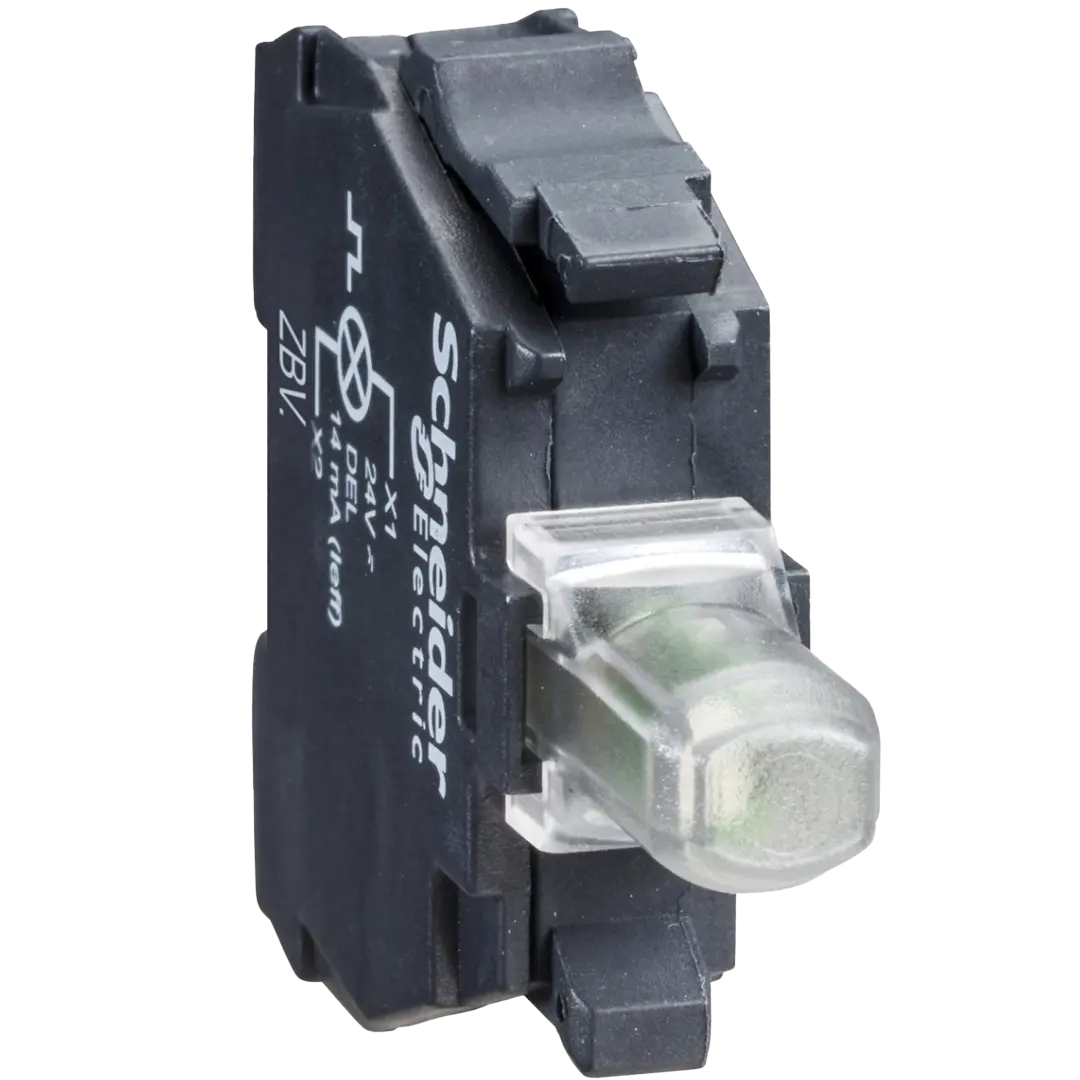

xIlluminated metallic complete unit with contact function. It combines simplicity of installation, flexibility, and robustness. It meets the requirements of the majority of industrial applications. Light block has direct light block supply, green light source, 5 sale quantity, steady signaling type, protected LED light source, integral LED bulb base and [Us] rated supply voltage of 110…120 V AC at 50/60 Hz to name a few. Switch ON/OFF 10A electrical contact, and/or provide visual signaling for 20 years with 0.5W power consumption at 30% use rate.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | UL 508,JIS C8201-5-1,EN/IEC 60947-5-4,EN/IEC 60947-1,EN/IEC 60947-5-5,CSA C22.2 No 14,EN/IEC 60947-5-1,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 110...120 V AC at 50/60 Hz |
| Current Consumption | 14 mA |
| Colour | Green |
