Description

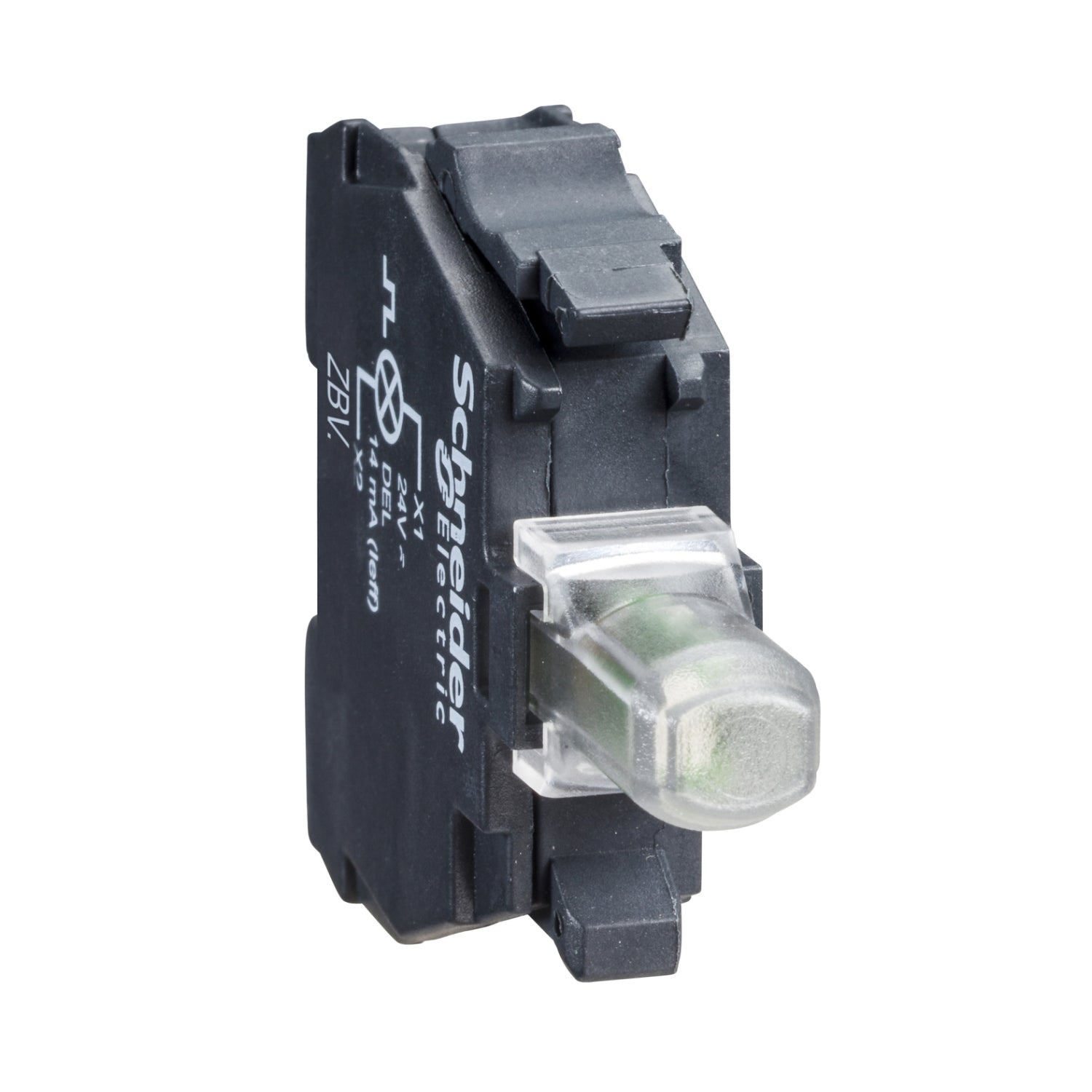

xThis is a green light block for a Ø22 control head, designed for supply voltages of 24-120 V AC/DC at 50/60 Hz. It fits onto Ø22 panel cut-outs and connects via screw clamp terminals, accepting both cross-head and slotted screwdrivers for installation. The IP20 rating suits enclosed control panel applications, and the operating temperature range of -40 to 70°C allows use in varied industrial environments.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
- Operating temperature: -40…70 °C
- Colour: Green
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-1,IEC 60947-5-4,JIS C8201-5-1,UL 508,IEC 60947-5-5,CSA C22.2 No 14,IEC 60947-5-1,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 24...120 V AC/DC at 50/60 Hz |
| Colour | Green |
