Description

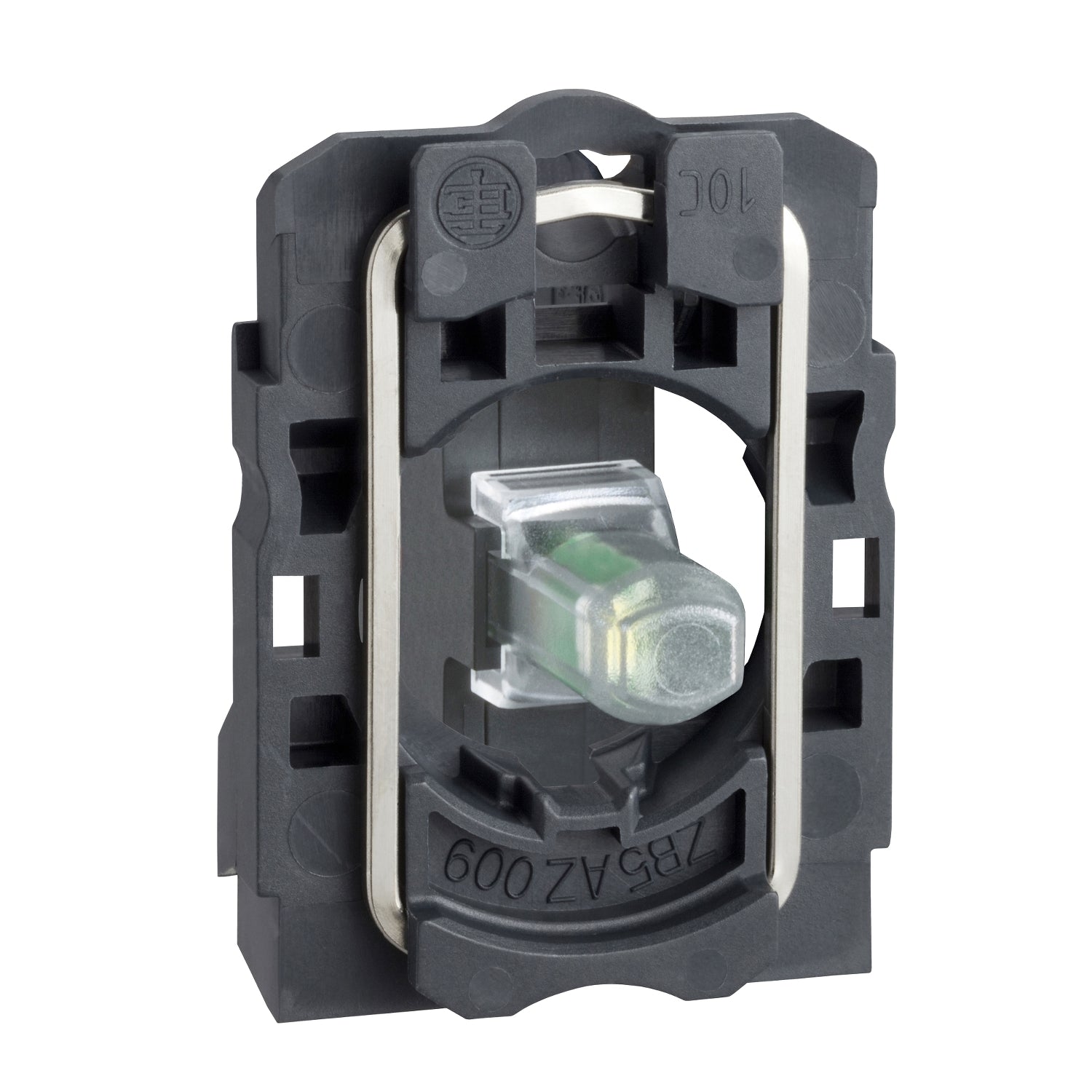

xThis light block comprises the body and fixing collar for a red pilot light unit, rated for a supply of 24 to 120V AC/DC at 50/60Hz. It is designed for panel mounting, with screw clamp terminals for wiring connection and screw fixing compatible with Philips, pozidriv, and flat-blade screwdrivers. The unit is suited to operation across a wide temperature range, from -40°C to 70°C, and complies with IEC, CSA, UL and JIS standards for low-voltage switchgear. It is typically used within industrial control panels to provide visual status indication.
Key specifications
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
- Operating temperature: -40…70 °C
- Colour: Red
Specifications
x| Compliance/Certifications | IEC 60947-5-1,IEC 60947-1,CSA C22.2 No 14,IEC 60947-5-4,UL 508,JIS C8201-5-1,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 32mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Supply Voltage | 24...120 V AC/DC at 50/60 Hz |
| Colour | Red |
