Description

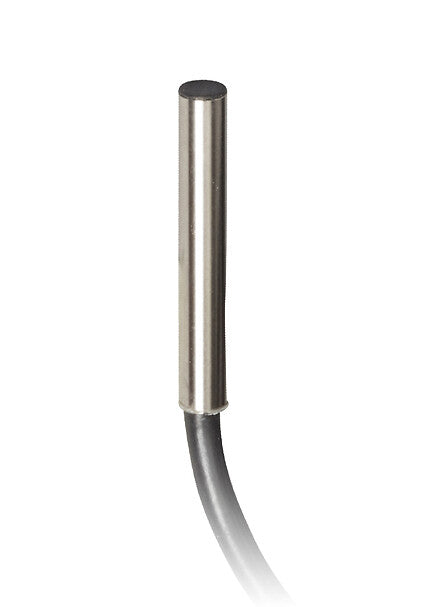

xThis Schneider XS1 series sensor is a cylindrical Ø4 mm inductive proximity sensor with a nickel-plated brass enclosure and PPS front face, designed for flush mounting and frontal detection at a nominal sensing distance of 1 mm. It operates on a 5-24 V DC rated supply (5-30 V DC limits), with a PNP discrete output (1 NO) and a 3-wire, 2 m cable connection. Rated IP67 and suited to ambient temperatures from -25 to 70°C, it is intended for general-purpose object detection in control panels and automated machinery.
Key specifications
- Sensing range: > 0 - 2.5 mm
- Material: Metal
Specifications
x| Weight (in Kg) | 0.028 |
| Net weight | 0.025 kg |
| Enclosure Material | Nickel plated brass |
| [Us] rated supply voltage | 5 - 24 V DC |
| Ambient air temperature for operation | -25 to 70 °C |
| Length | 28 |
| Maximum Delay Response | 1 ms |
| Supply Voltage Limits | 5-30 V DC |
| Series Name | General purpose |
| Cable Length | 2 m |
| Sensor Type | Inductive proximity sensor |
| Detection Face | Frontal |
| Cable Composition | 3 x 0.11 mm² |
| Material | Metal |
| [sn] Nominal Sensing Distance | 1 mm |
| Detector Flush Mounting Acceptance | Flush mountable |
| Discrete Output Function | 1 NO |
| Front Material | PPS |
| Maximum Delay First Up | 5 ms |
| Maximum Delay Recovery | 1 ms |
| Operating Zone | 0-0.8 mm |
| Output Circuit Type | DC |
| Sensing Range | > 0 - 2.5 mm |
| Sensor Design | Cylindrical Ø 4 mm plain |
| Sensor Name | XS1 |
| Size | 28 mm |
| Threaded Length | 0 mm |
| Type of Output Signal | Discrete |
| Wire Insulation Material | PvR |
| Wiring Technique | 3-wire |
| [IP] Degree of Protection | IP67 conforming to IEC 60529 |
| Product Certifications | UL, CSA |
| Status LED | Output state: 1 LED (yellow) |
| Switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| Switching Frequency | <= 5000 Hz |
| Ambient air temperature for storage | -40 to 85 °C |
| Current Consumption | <= 10 mA no-load |
| Discrete Output Type | PNP |
| Marking | CE |
| Range of Product | Telemecanique Inductive proximity sensors XS |
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Electrical Connection | Cable |
| Body Type | Fixed |
| Maximum Voltage Drop | <2 V (closed) |
