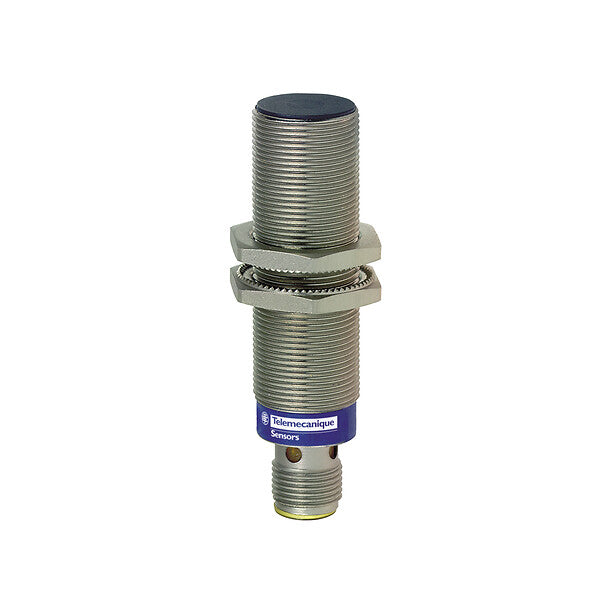

Schneider Inductive proximity sensor, fixed, 2-wire, 5mm Part number XS1M18MA250K

This inductive proximity sensor detects the presence of metallic targets without physical contact, switching an output when an object enters its 5mm sensing range. Its fixed, 2-wire configuration allows it to be wired directly into existing control circuits in series with the load, simplifying installation in control panels and on...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x

This inductive proximity sensor detects the presence of metallic targets without physical contact, switching an output when an object enters its 5mm sensing range. Its fixed, 2-wire configuration allows it to be wired directly into existing control circuits in series with the load, simplifying installation in control panels and on machinery. It is typically used for position and object detection tasks in automated systems where a compact, non-contact sensing element is required.

Specifications
Specifications
x
Productdatasheet
Range of productTelemecanique Inductive proximity sensors XS
Series nameGeneral purpose
Sensor typeInductive proximity sensor
Wiring configuration2-wire
Output circuit typeAC/DC
Protection typeShort-circuit protection multi voltage
Device application2-wire DC short-circuit protection
Sensor nameXS1
Sensor designCylindrical M18
Size60 mm
Body typeFixed
Detector flush mountingFlush mountable
MaterialMetal
Type of output signalDiscrete
Wiring technique2-wire
[Sn] nominal sensing distance5 mm
Discrete output function1 NO
Electrical connectionCable
Cable length2 m
[Us] rated supply voltage24...210 V DC 24...240 V AC 50/60 Hz
IP degree of protectionIP68 double insulation conforming to IEC 60529
Thread typeM18 x 1
Detection faceFrontal
Front materialPPS
Enclosure materialNickel plated brass
23 May, 20221
Operating zone0…4 mm
Differential travel1...15% of Sr
Cable composition2 x 0.34 mm²
Wire insulation materialPvR
Status LEDOutput state: 1 LED (yellow) Supply on: 1 LED (green)
Maximum residual current1.5 mA open state
Switching frequency<= 2000 Hz DC <= 25 Hz AC
Maximum voltage drop<5.5 V (closed state)
Maximum delay first up70 ms
Maximum delay response2 ms
Maximum delay recovery4 ms
MarkingCE
Threaded length51 mm
Length60 mm
Net weight0.12 kg
Product certificationsUL CSA CCC
Ambient air temperaturefor -25…70 °C
Vibration resistance25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn for 11 ms conforming to IEC 60068-2-7
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Weight106.0 g
Package 1 Height13.5 cm
Package 1 width9.5 cm
Package 1 Length4.1 cm
Unit Type of Package 2S03
Package 2 Weight5.141 kg
Package 2 Height30 cm
Package 2 width30 cm
Package 2 Length40 cm
Package 3 Height30 cm
