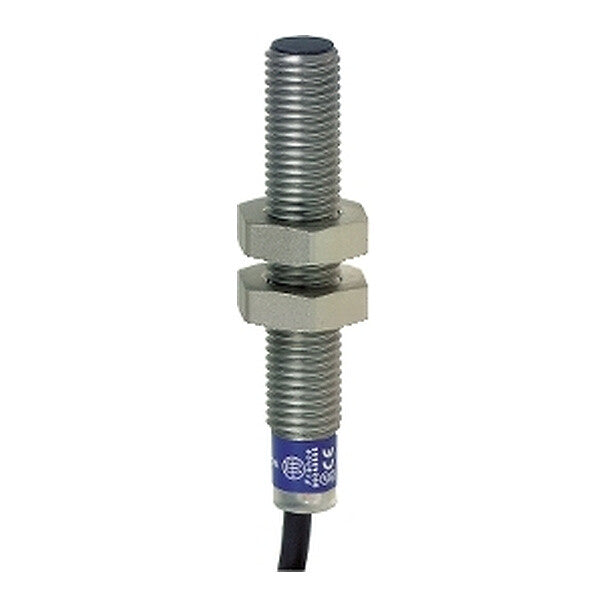

Schneider Inductive proximity sensor, fixed, 2-wire, 1mm Part number XS1M08MA230

This inductive proximity sensor detects metallic targets without physical contact, using a 2-wire fixed configuration with a 1mm sensing range. It is designed for mounting within control panels and machinery where compact, non-contact position or presence sensing of metal parts is required. The 2-wire connection simplifies wiring in space-constrained panel...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

This inductive proximity sensor detects metallic targets without physical contact, using a 2-wire fixed configuration with a 1mm sensing range. It is designed for mounting within control panels and machinery where compact, non-contact position or presence sensing of metal parts is required. The 2-wire connection simplifies wiring in space-constrained panel layouts.

Specifications
Specifications
x
Product data sheetXS1M08MA230
ISO threadM8 x 1
Detection faceFrontal
Detector flush mounting acceptanceFlush mountable
MaterialStainless steel
Front materialPPS
Output circuit typeAC/DC
Cable composition2 x 0.11 mm²
Wire insulation materialPvR
Switching frequency<= 25 Hz AC <= 3000 Hz DC
MarkingCE
Height8 mm
Length50 mm
Net weight0.035 kg
Product certificationsCSA[RETURN]CCC[RETURN]UL
Ambient air temperature foroperation -25…80 °C
Jul 30, 20241
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height2.100 cm
Package 1 Width9.700 cm
Package 1 Length15.300 cm
Package 1 Weight42.000 g
Unit Type of Package 2S03
Number of Units in Package 244
Package 2 Height30 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight3.188 kg
Documents
Documents
x
Download Datasheet
