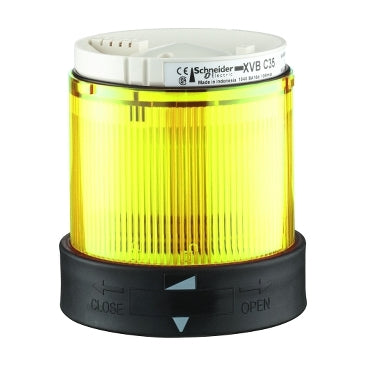

Schneider Illuminated unit, plastic, yellow, steady, Ø 70mm Part number XVBC2B8

This illuminated unit is a plastic, steady yellow indicator with a 70mm diameter, designed for mounting on a fixing base such as the XVBZ0, achieving an IP65 rating in that configuration. It operates on a 24 V AC/DC supply with current consumption below 47 mA, and connects via screw clamp terminals accepting up to 1 x 1.5 mm² with cable end. It is suited to control panel applications requiring visual status signalling, with an operating temperature range of -25 to 50°C.

Key specifications

• IP rating: IP65 on fixing base XVBZ0. conforming to IEC 60529
• Connection: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
• Operating temperature: -25…50 °C
