Description

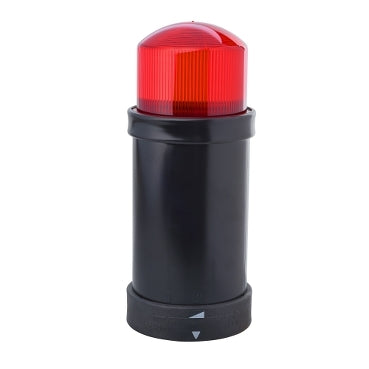

xThis is an illuminated plastic unit with a red flash-effect lens, 70mm in diameter, intended for mounting on an XVBZ0 fixing base. It operates on a 24 V AC/DC supply with a current consumption below 350 mA DC, and connects via screw clamp terminals accepting cable ends up to 1.5 mm². Fitted to the base, the unit achieves an IP65 rating, making it suitable for use as a visual signal or warning indicator on control panels and machinery.
Key specifications
- IP rating: IP65 on fixing base XVBZ0. conforming to IEC 60529
- Connection: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
Specifications
x| IP Rating / Detailed | IP65 on fixing base XVBZ0. conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-1 |
| Part Depth (mm) | 70mm |
| Part Width (mm) | 70mm |
| Part Height (mm) | 157mm |
| Connection Type | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| Supply Voltage | 24 V AC/DC |
| Current Consumption | < 350 mA DC |
