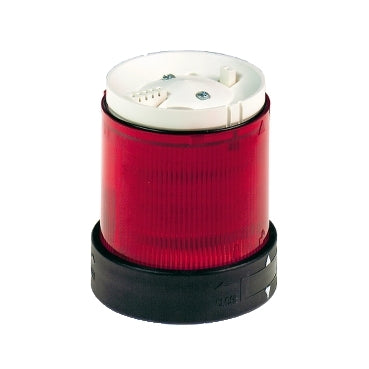

Schneider Illuminated unit, flashing, red, 24VAC/DC Part number XVBC5B4

This illuminated unit provides a red flashing indication for panel-mounted signalling, operating from a 24 V AC/DC supply with a current consumption below 47 mA. It connects via screw clamp terminals accepting cables up to 1.5 mm² with cable end, and measures 70 mm wide, 70 mm deep and 63 mm high. When fitted to the XVBZ0 fixing base, it achieves an IP65 rating in accordance with IEC 60529, and complies with IEC 60947-5-1. It is typically used in control panels and machine interfaces where visual status alerts are required.

Key specifications

• IP rating: IP65 on fixing base XVBZ0. conforming to IEC 60529
• Connection: Screw clamp terminals, <= 1 x 1.5 mm² with cable end
