Description

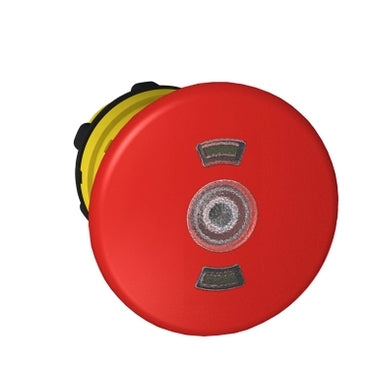

xThis is an illuminated emergency stop switching off head with a 40 mm diameter, finished in red for immediate visual identification on a control panel. The head illuminates and provides a positive switching-off function when pressed, and is rated IP54 for protection against dust and splashing water. It is designed for use in panel-mounted emergency stop stations across a stated operating temperature range of -40 to 70°C.
Key specifications
- IP rating: IP54 conforming to IEC 60529
- Operating temperature: -40…70 °C
Specifications
x| IP Rating / Detailed | IP54 conforming to IEC 60529 |
| Compliance/Certifications | GB 14048.5,UL 508,ISO 13850,IEC 60204-1,CSA C22.2 No 14,IEC 60947-1,JIS C8201-5-1,IEC 60947-5-4,IEC 60947-5-1,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 59mm |
| Part Width (mm) | 40mm |
| Part Height (mm) | 40mm |
| Operating Period(Mech) | 300000 cycles |
Documents
