Description

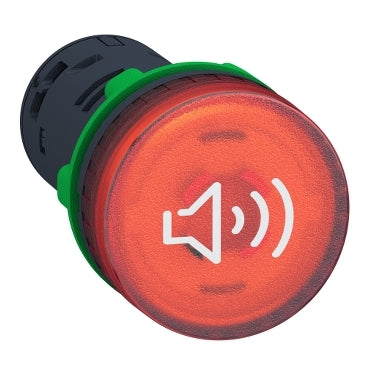

xThis unit combines an illuminated red indicator with an integral buzzer, offering continuous or intermittent audible operation from a Ø22 panel cut-out. It operates from a 24 V supply, drawing no more than 58 mA, and is rated for use across a temperature range of -40 to 70 °C. It is suited to control panels and machine interfaces where combined visual and audible alarm or status signalling is required.
Key specifications
- Operating temperature: -40…70 °C
- Colour: Red
Specifications
x| Compliance/Certifications | CSA C22.2 No 14,IEC 60947-5-1,IEC 60947-5-4,JIS C8201-5-1,IEC 60947-1,UL 508,IEC 60947-5-4,IEC 60947-5-1,IEC 60947-1,JIS C8201-1,IEC 60529,IEC 62262,IEC 50102 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 55mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Supply Voltage | 24 V +/- 10 % |
| Current Consumption | <= 58 mA |
| Colour | Red |
