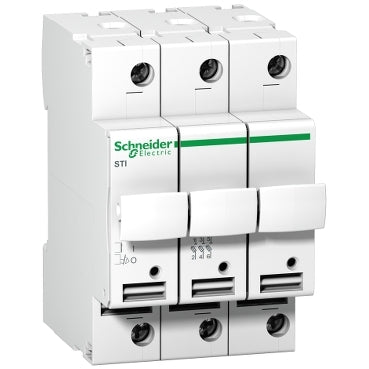

Schneider Fuse-disconnector, 3-pole, 500VAC, 25A Part number A9N15656

The A9N15656 is a 3-pole fuse-disconnector from Schneider Electric's Acti 9 STI series, rated at 25 A and 500 V AC, for use with 10.3 x 38 mm gG or aM fuses. It provides disconnection and fuse protection for circuits within control panels, clipping onto DIN rail for compact installation....
Vendor: Schneider Electric
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

The A9N15656 is a 3-pole fuse-disconnector from Schneider Electric's Acti 9 STI series, rated at 25 A and 500 V AC, for use with 10.3 x 38 mm gG or aM fuses. It provides disconnection and fuse protection for circuits within control panels, clipping onto DIN rail for compact installation. Screw clamp terminals accommodate conductors from 0.75 to 10 mm², and the enclosure carries an IP20 rating for use in pollution degree 3 environments.

Key specifications

  • Rated voltage: 500 V AC 50/60 Hz
  • Rated current: 25 A
  • Colour: White
Specifications
Specifications
x

Acti 9 - Fuse-Disconnector STI - 3 Poles - 25 A - for Fuse 10.3 x 38 mm

Product Overview

Part NumberA9N15656
Product TypeFuse-Disconnector
SeriesActi 9 STI
Device Short NameSTI
Poles Description3P
Rated Current25 A
Fuse CurvegG, aM
Fuse Size10.3 x 38 mm
Rated Operational Voltage (Ue)500 V AC
Rated Insulation Voltage (Ui)500 V AC 50/60 Hz
Mounting ModeClip-on
Mounting SupportDIN Rail
9 mm Pitches6
ColorWhite

Technical Specifications

Height81 mm
Width54 mm
Depth75 mm
Terminal TypeScrew Clamp Terminals
Terminal Capacity (Rigid, 1 Cable)0.75 - 10 mm²
Terminal Capacity (Flexible, 1 Cable)0.5 - 6 mm²
Terminal Capacity (Rigid, 2 Cables)0.75 - 4 mm²
Terminal Capacity (Flexible, 2 Cables)0.5 - 6 mm²
Wire Stripping Length12 mm
Tightening Torque2 N·m

Environmental Data

StandardsIEC EN 60947-3, IEC 60269-1/2
IP Degree of ProtectionIP20
Pollution Degree3
Ambient Air Temperature for Operation-20 to 60 °C
Ambient Air Temperature for Storage-40 to 80 °C
Packaging Made with Recycled CardboardYes (Minimum 70%, 50% in US)
Take-back ProgramNo
