Description

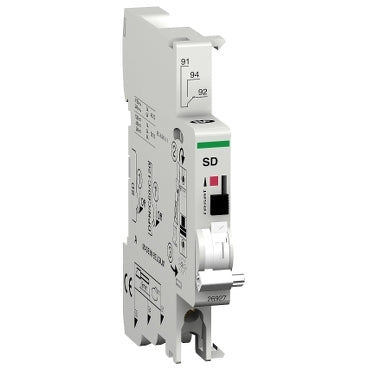

xThis fault contact is a fixed, DIN rail mounted auxiliary contact with a single changeover (1 c/o) configuration, rated for 24-130VDC. It is designed to signal fault conditions within control panel circuits, connecting via bottom clamp terminals suitable for rigid cable up to 2.5 mm². The unit operates across a temperature range of -25 to 50 °C and complies with EN/IEC 60947-5-1 and EN 62019-2, making it suitable for use in industrial automation panels requiring compact, panel-mounted signalling devices.
Key specifications
- Connection: Clamp terminal (bottom) 1 cable(s) 2.5 mm² (AWG 14) - rigid,Clamp terminal (bottom) 2 cable(s) 1.5 mm² (AWG 16) - rigid
- Operating temperature: -25…50 °C
- Mounting: Fixed
Specifications
x| Compliance/Certifications | EN/IEC 60947-5-1,EN 62019-2 |
| Temperature: Operating | -25…50 °C |
| Part Depth (mm) | 73.5mm |
| Part Width (mm) | 9mm |
| Part Length (mm) | 9mm |
| Part Height (mm) | 85mm |
| Tightening Torque (N.m) | 1 Nm |
| Connection Type | Clamp terminal (bottom) 1 cable(s) 2.5 mm² (AWG 14) - rigid,Clamp terminal (bottom) 2 cable(s) 1.5 mm² (AWG 16) - rigid |
| Mounting Type | Fixed |
