Description

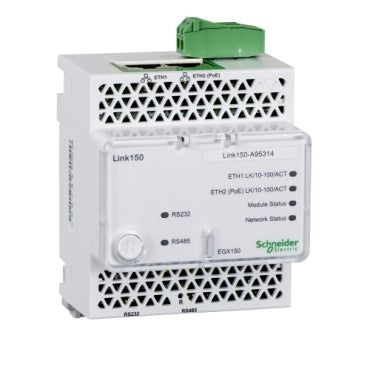

xThis Ethernet gateway provides two Ethernet ports and supports 24 V DC and PoE power supplies. It is designed for communication gateway applications, enabling Modbus TCP/IP and other Ethernet-based protocols for seamless integration.
Specifications
x| IP Rating | IP20 / IP30 / IP40 |
| Compliance/Certifications | AS/NZS 60950-1 / CSA C22.2 No 60950-1 / IEC 60950-1 / IEC 61000-6-2 / UL 60950-1 / UL 61010-1 / UL 610 |
| Temperature: Operating | -25°C - 70 °C |
| Part Depth (mm) | 72mm |
| Part Width (mm) | 71mm |
| Part Length (mm) | Power supply: 7mm |
| Part Height (mm) | 105mm |
| Weight (g) | 175g |
| Connection Type | Power supply: screw terminal block (top) 0.2 - 1.5 mm² cable(s) rigid / Power supply: screw terminal block (top) 0.2 - 1.5 mm² cable(s) flexible with cable end / Power supply: screw terminal block (top) 0.2 - 1.5 mm² cable(s) flexible without cable end |
| Mounting Type | 35 mm DIN rail / Clip-on |
| Current Consumption | 130 mA at 24 VDC via external supply (20 °C) |
| Power Consumption | in |
Documents
