Description

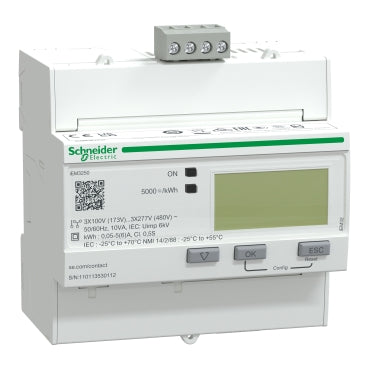

xThis Schneider energy meter uses an external CT connection and mounts to a DIN rail via a clip-on fixing, suiting installation within control panels and distribution boards. It is designed for use on 50 Hz systems and features screw terminal connections, with 6 mm² cable capacity for the current circuit and 2.5 mm² for the voltage circuit. The enclosure carries an IP40 rating on the front panel and is rated for operation across a temperature range of -25 to 70 °C, making it suitable for a variety of industrial monitoring applications.
Key specifications
- IP rating: IP40 front panel: conforming to IEC 60529
- Connection: Current circuit: screw terminals 6 mm² cable(s) ,Voltage circuit: screw terminals 2.5 mm² cable(s)
- Operating temperature: -25…70 °C - IEC
- Colour: White
- Mounting: Clip-on
Specifications
x| IP Rating / Detailed | IP40 front panel: conforming to IEC 60529 |
| Compliance/Certifications | BS EN 61557-12:2021,IEC 61557-12:2021,EN 61557-12:2021,BS EN 61326-1,IEC 61326-1,EN 61326-1,BS EN 62052-11:2020,IEC 62052-11:2020,EN 62052-11:2020,BS EN 62053-21,IEC 62053-21,EN 62053-21,BS EN 62053-22:2020,IEC 62053-22:2020,EN 62052-22,BS EN 62052-31:2015,IEC 62052-31:2015,EN 62052-31:2015,BS EN 61010-1:2010,EN 61010-1:2010,IEC 61010-1:2010,UL 61010-1:2010,BS EN 61010-2-30,IEC 61010-2-30,EN 61010-2-30,UL 61010-2-30,ANSI C12.20 |
| Temperature: Operating | -25…70 °C - IEC |
| Part Depth (mm) | 69mm |
| Part Width (mm) | 90mm |
| Part Height (mm) | 95mm |
| Communication | port protocol |
| Connection Type | Current circuit: screw terminals 6 mm² cable(s) ,Voltage circuit: screw terminals 2.5 mm² cable(s) |
| Max Frequency | 50 Hz |
| Mounting Type | Clip-on |
| Colour | White |
