Description

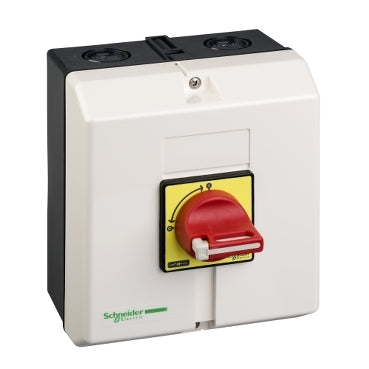

xThis high-performance emergency stop switch disconnector is designed for industrial safety systems. It features a 3-pole configuration, a rotary handle, and supports a wide range of operational voltages and currents.
Specifications
x| IP Rating | IP65 |
| Compliance/Certifications | IEC 60204 / IEC 60947-4-1 |
| Temperature: Operating | -20°C to 50 °C |
| Part Depth (mm) | 152mm |
| Part Width (mm) | 157mm |
| Part Height (mm) | 180mm |
| Weight (g) | 930g |
| Packaging size / unit | 1 / 32 pc(s) |
| Tightening Torque | 4 Nm |
| Connection Type | Screw clamp terminals16 mm² - flexible - with cable end / Screw clamp terminals25 mm² - solid |
| Rated Operating Voltage | 690 VAC |
| Operating Period | 30000 cycles (mechanical) / 30000 cycles AC-21 / 30000 cycles DC-1 - 5 (electrical) |
| Warranty | 18 Months |
| Colour | Red |
