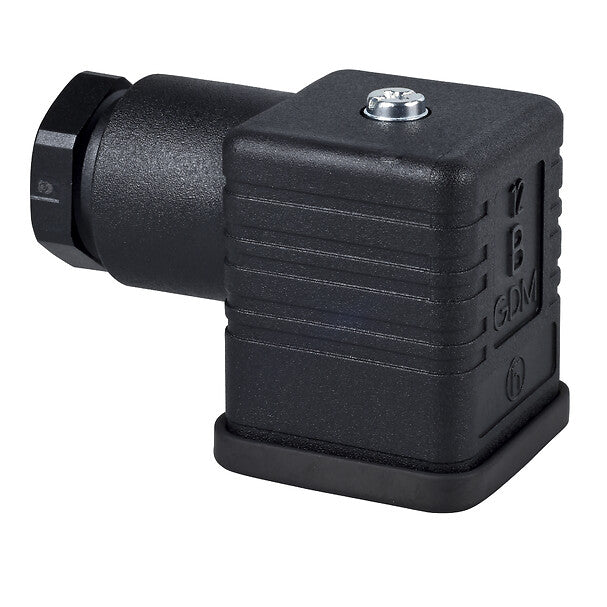

Schneider Elbowed connector, female, 4-pin, PG11, 16A
Schneider Elbowed connector, female, 4-pin, PG11, 16A

Schneider Elbowed connector, female, 4-pin, PG11, 16A Part number XZCC43FCP40B

This elbowed female connector conforms to DIN 43650 Form A and provides a 4-pin termination with a PG11 cable gland entry. Its right-angled body suits installations where cable clearance is restricted, such as on solenoid valves and sensors mounted within control panels or machine enclosures. The connector carries an IP65...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

This elbowed female connector conforms to DIN 43650 Form A and provides a 4-pin termination with a PG11 cable gland entry. Its right-angled body suits installations where cable clearance is restricted, such as on solenoid valves and sensors mounted within control panels or machine enclosures. The connector carries an IP65 protection rating and is rated for operation between -25°C and +80°C.

Key specifications

  • Mounting: Elbowed / Right Angle
Specifications
Specifications
x

Product Name

LabelFemale DIN 43650 A 4-Pin Elbowed Connector, Cable Gland PG11

Product Details

Product ReferenceXZCC43FCP40B
Connector TypeFemale Elbowed Connector
StandardsDIN 43650 Form A
Number of Pins4 Pins
Cable Gland SizePG11
Mounting TypeElbowed / Right Angle

Environmental Data

Protection RatingIP65
Operating Temperature Range-25 °C to +80 °C

Sustainability

Net Zero CommitmentSchneider Electric aims to achieve Net Zero by 2050
InitiativesUse Better, Use Longer, Use Again (Circularity & Sustainability Campaign)
