Description

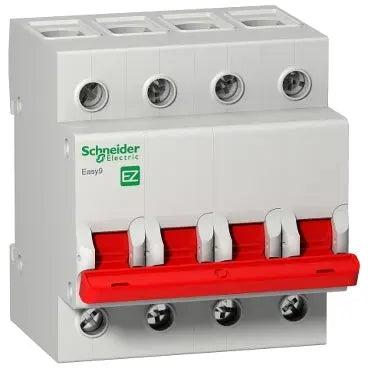

xThis four-pole switch disconnector is rated for 63 A at 400 V AC. It features a robust toggle design, ensuring safe isolation and control in electrical distribution systems.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CE / IEC 60947-3 |
| Temperature: Operating | -5°C to 55°C |
| Part Depth (mm) | 66.5mm |
| Part Width (mm) | 72mm |
| Part Height (mm) | 81mm |
| Packaging size / unit | 1 pc(s) / 3 pc(s) |
| Tightening Torque | 3.5 Nm |
| Connection Type | Tunnel type terminal (top or bottom) 1 - 35 mm² rigid / Tunnel type terminal (top or bottom) 1 - 25 mm² flexible |
| Rated Operating Voltage | 400 VAC 50/60 Hz |
| Mounting Type | Clip-on / DIN rail |
| Operating Period | 8500 cycles (mechanical) / 1500 cycles (electrical) |
| Colour | Grey |
