Description

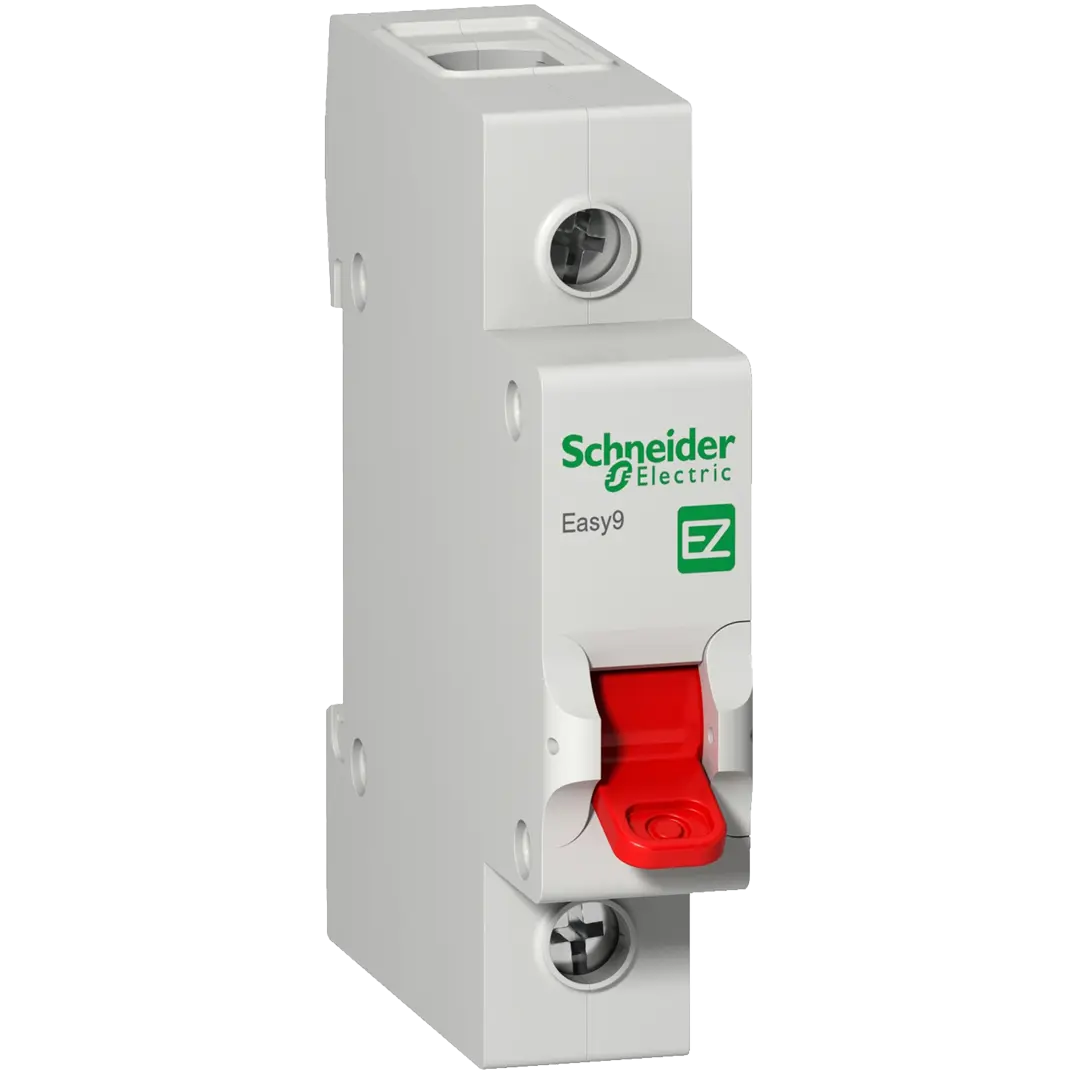

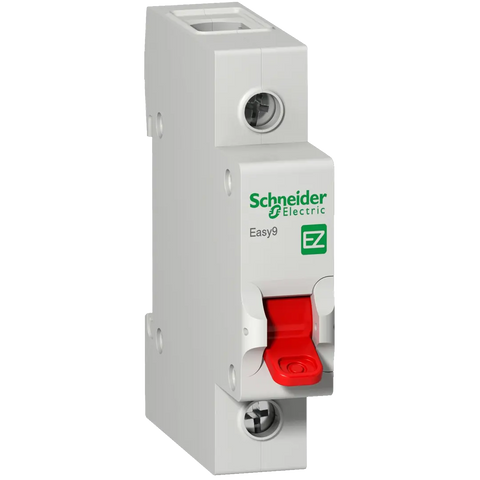

xA switch capable of making, carrying and breaking currents under normal circuit conditions and which, in the open position, complies with the isolating requirements specified for a disconnector. This product has a rated operational current of 63 A at 230 V 50/60 Hz. [Icm] rated short-circuit making capacity of up to 0.945 kA. Electrical durability of 1500 cycles. The product consists of 1 Pole, [Ue] rated operational voltage 230 V AC 50/60 Hz, Toggle control type, ON/OFF indication local signalling, Clip-on mounting mode and DIN rail mounting support.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-3 |
| Temperature: Operating | -5…55 °C |
| Part Depth (mm) | 66.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 81mm |
| Tightening Torque (N.m) | 3.5 Nm |
| Connection Type | Tunnel type terminal (top or bottom) 1…35 mm² rigid,Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Rated Operating Voltage | 230 V AC 50/60 Hz |
| Mounting Type | Clip-on |
| Current Rating | 63 A at 230 V 50/60 Hz |
| Operating Period(Mech) | 8500 cycles |
| Operating Period(Elec) | 1500 cycles |
| Colour | Grey |
