Schneider Control station, green + red p/button, 1NO+1NC Schneider Electric
Schneider Control station, green + red p/button, 1NO+1NC Schneider Electric

Schneider Control station, green + red p/button, 1NO+1NC Part number XALE2011

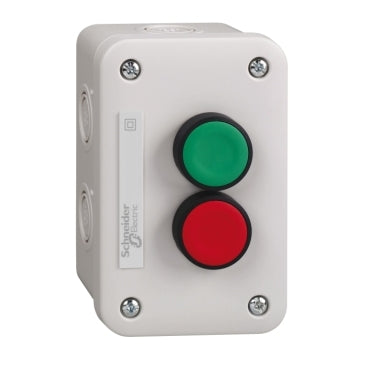

This control station combines a green and a red pushbutton in a single enclosure, each fitted with 1NO+1NC contacts for start/stop or on/off control functions. It carries an IP54 rating, suiting installation in industrial environments where protection against dust and splashing water is required. The unit is rated for operation...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 3 left in stock
Description
Description
x

This control station combines a green and a red pushbutton in a single enclosure, each fitted with 1NO+1NC contacts for start/stop or on/off control functions. It carries an IP54 rating, suiting installation in industrial environments where protection against dust and splashing water is required. The unit is rated for operation across a temperature range of -25 to 55 °C, with defined switching currents for both AC and DC applications, and is typically used as a local control point on machinery or panels.

Key specifications

  • IP rating: IP54 conforming to IEC 60529
  • Operating temperature: -25…55 °C
  • Colour: of base of enclosure
Specifications
Specifications
x
IP Rating / DetailedIP54 conforming to IEC 60529
Compliance/CertificationsEN/IEC 60947-5-1,EN/IEC 62208,EN/IEC 60947-1,EN/IEC 60947-5-5
Temperature: Operating-25…55 °C
Current Rating0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1,0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1,0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1,0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1
Colourof base of enclosure
Documents
Documents
x
Download Datasheet
