Description

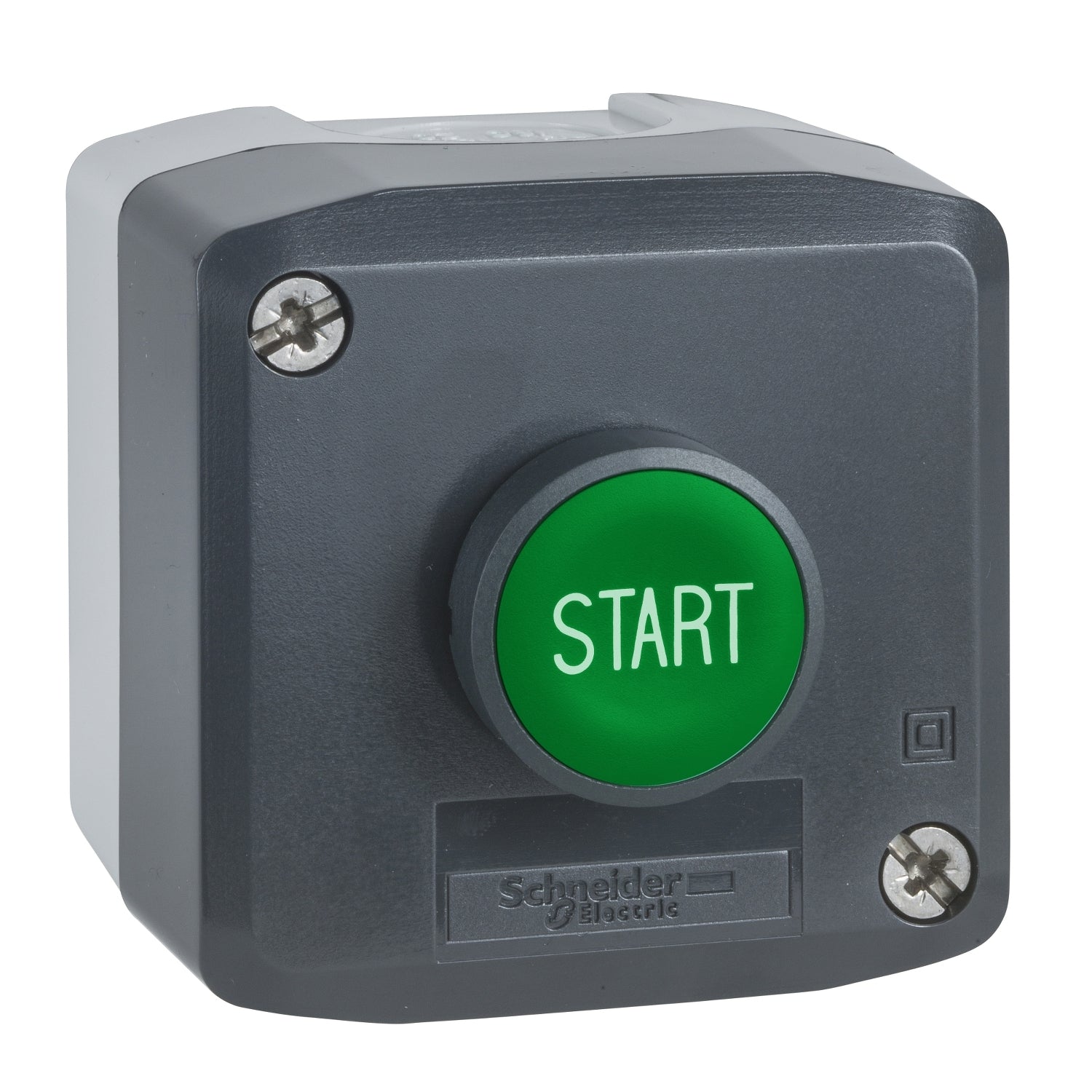

xThis is a Ø22 control station featuring a green "Start" pushbutton, designed for panel-mounted control circuits. Contacts are silver alloy (Ag/Ni), with screw clamp terminals for wiring, and the unit carries an IP66 rating for protection against dust and water ingress. It is rated for operation across a wide temperature range of -40 to 70°C, suiting installations in demanding industrial environments, and is compliant with IEC 60947-5-1 and related standards for low-voltage switchgear.
Key specifications
- IP rating: IP66 conforming to IEC 60529
- Connection: Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
- Operating temperature: -40…70 °C
- Colour: of base of enclosure
Specifications
x| IP Rating / Detailed | IP66 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-4,CSA C22.2 No 14,IEC 60947-5-1,UL 508,IEC 60947-1,JIS C8201-5-1,IEC 60947-5-5,JIS C8201-1 |
| Temperature: Operating | -40…70 °C |
| Material: Product | Silver alloy (Ag/Ni) |
| Screw Type | Cross compatible with Philips no 1 screwdriver,Cross compatible with pozidriv No 1 screwdriver,Slotted compatible with flat Ø 4 mm screwdriver,Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1,Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Current Rating | 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1,3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1,1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1,0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1,0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1,0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Operating Period(Mech) | 10000000 cycles |
| Operating Period(Elec) | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C,1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C,1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C,1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C,1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Colour | of base of enclosure |
