Schneider Control station, 1 green flush p/button Ø22, 1 NO
Schneider Control station, 1 green flush p/button Ø22, 1 NO

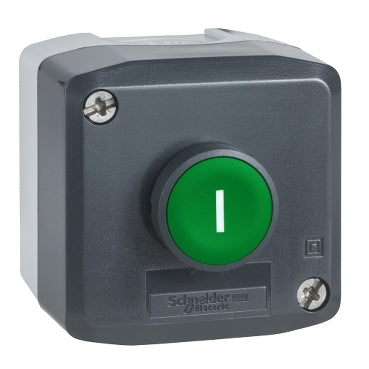

Schneider Control station, 1 green flush p/button Ø22, 1 NO Part number XALD102

This control station with a green "I" push-button is built for durability and reliable performance. It is resistant to harsh conditions and is ideal for industrial start functions.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This control station with a green "I" push-button is built for durability and reliable performance. It is resistant to harsh conditions and is ideal for industrial start functions.
Specifications
Specifications
x
IP RatingIP66 / IP67 / IP69 / IP69K
Compliance/CertificationsCSA C22.2 No 14 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL 508
Temperature: Operating-40°C to 70 °C
Weight (g)135g
Packaging size / unit1 / 40 / 320 pc(s)
Material: ProductSilver alloy (Ag/Ni) / Polycarbonate
Screw TypeCross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Connection TypeScrew clamp terminals / <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 / Screw clamp terminals / >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Current Rating / Rated Current0.1 - 6 A
Operating Period10000000 cycles (mechanical) / 1000000 cycles / AC-15 / 2 A at 230 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 3 A at 120 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 4 A at 24 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / DC-13 / 0.2 A at 110 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / DC-13 / 0.5 A at 24 V / operating rate <3600 cyc/h / load factor: 0.5 conforming to IEC 60947-5-1 appendix C (electrical)
Warranty18 Months
Documents
Documents
x
Download Datasheet
