Description

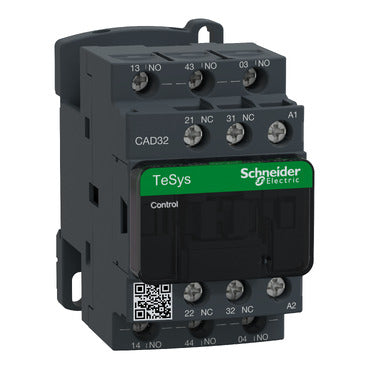

xThis control relay is built for control circuits requiring 3 NO and 2 NC pole contacts, with a rated voltage of up to 690 V and a 220 V AC coil, making it ideal for robust industrial applications.
Specifications
x| IP Rating | IP2X |
| Compliance/Certifications | CSA C22.2 No 60947-5-1 / EN/IEC 60947-5-1 / GB/T 14048.5 / JIS C8201-5-1 / UL 60947-5-1 |
| Temperature: Operating | -40°C to 60 °C / 60°C to 70 °C |
| Part Depth (mm) | 84mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 580g |
| Packaging size / unit | 1 / 20 / 320 pc(s) |
| Tightening Torque | 1.2 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1 - 4 mm²flexible without cable end / Screw clamp terminals 2 cable(s) 1 - 4 mm²flexible without cable end / Screw clamp terminals 1 cable(s) 1 - 4 mm²flexible with cable end / Screw clamp terminals 2 cable(s) 1 - 2.5 mm²flexible with cable end / Screw clamp terminals 1 cable(s) 1 - 4 mm²solid without cable end / Screw clamp terminals 2 cable(s) 1 - 4 mm²solid without cable end |
| Rated Operating Voltage | <= 690 VAC |
| Mounting Type | Plate / Rail |
| Power Consumption | 8 VA |
| Operating Period | 30 Mcycles (mechanical) |
| Warranty | 18 Months |
