Description

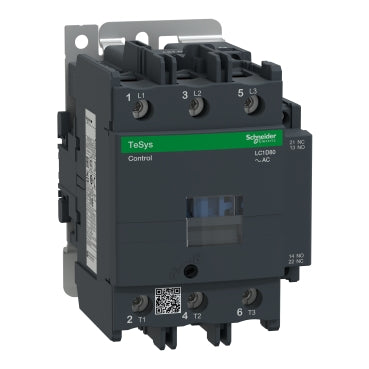

xThis is a 3-pole contactor with 3 normally open contacts, rated for switching applications in control panels and machinery. It handles up to 80 A (AC-3) at voltages up to 440 V AC, and up to 125 A under AC-1 conditions, making it suitable for motor control and general power switching circuits. The unit provides IP20 protection on its front face and terminates via screw clamp terminals, accommodating a range of cable sizes and stiffness types for both control and power circuits. Its compact dimensions suit installation within standard control panel enclosures.
Key specifications
- IP rating: IP20 front face conforming to IEC 60529
Specifications
x| IP Rating / Detailed | IP20 front face conforming to IEC 60529 |
| Compliance/Certifications | EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ,IEC 60335-1:Clause 30.2 |
| Part Depth (mm) | 130mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 127mm |
| Connection Type | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end,Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end,Power circuit: connector 1 4…50 mm² - cable stiffness: solid without cable end,Power circuit: connector 2 4…25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | Power circuit: <= 300 V DC 25...400 Hz |
| Current Rating | 125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Power Consumption | in VA |
| Operating Period(Mech) | 4 Mcycles |
| Operating Period(Elec) | 0.8 Mcycles 125 A AC-1 at Ue <= 440 V,1.5 Mcycles 80 A AC-3 at Ue <= 440 V,1.5 Mcycles 80 A AC-3e at Ue <= 440 V |
