Description

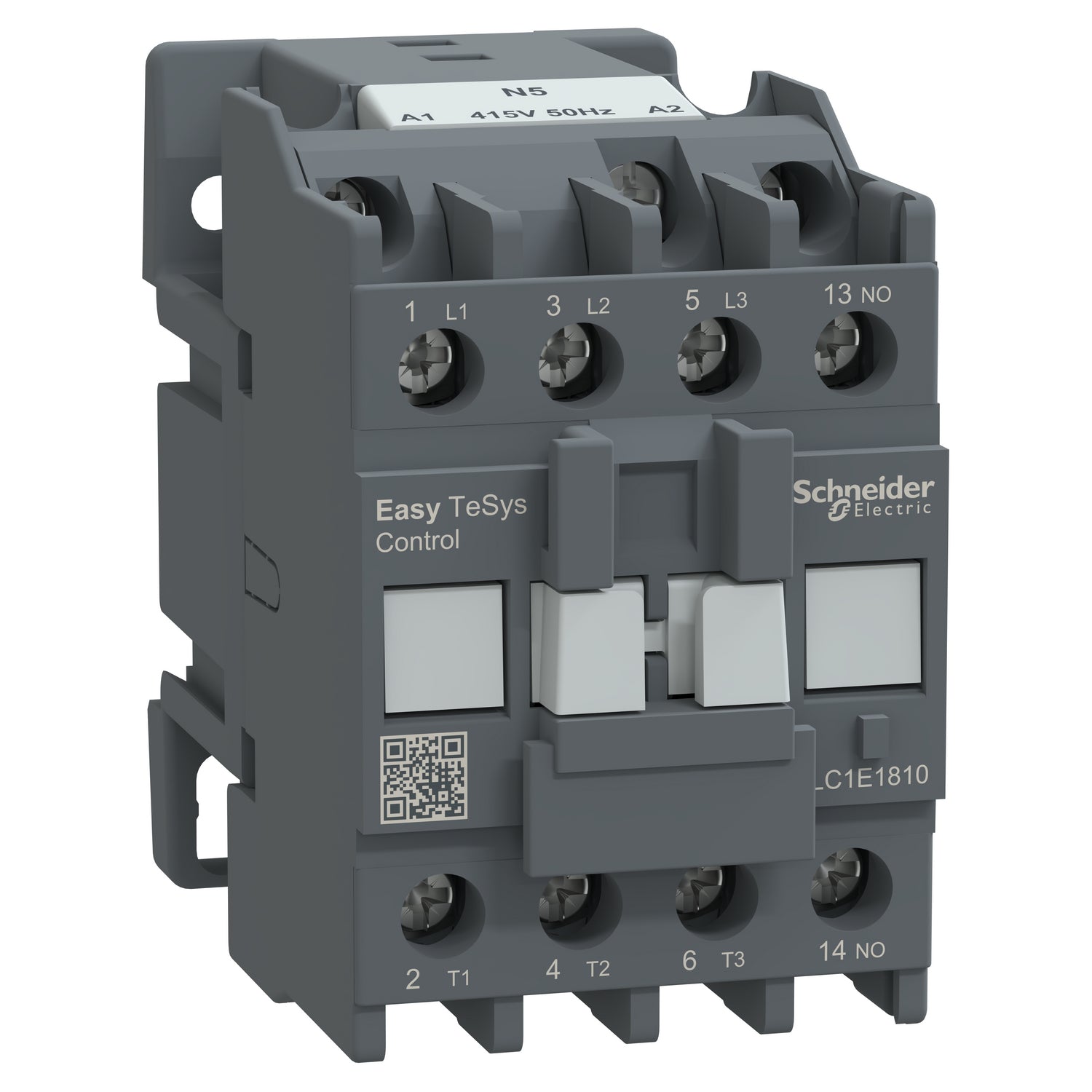

xThis Schneider Electric contactor is a 3-pole device with 3NO contacts, fitted with a 415VAC coil, for making and breaking power circuits in industrial control panels. It is rated at 18A (AC-3) up to 440V AC and 32A under AC-1 conditions, with a power circuit rated up to 690V AC at 50/60Hz. Power and control circuit connections use screw clamp terminals, accepting both flexible and solid cable in the stated sizes. The enclosure carries an IP2X rating and complies with IEC 60947-5-1, IEC 60947-4-1 and IEC 60947-1.
Key specifications
- IP rating: IP2X conforming to IEC 60529
Specifications
x| IP Rating / Detailed | IP2X conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-1,IEC 60947-4-1,IEC 60947-1 |
| Part Depth (mm) | 80mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 74mm |
| Connection Type | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end,Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | Power circuit: <= 690 V AC 50/60 Hz |
| Current Rating | 18 A (at <55 °C) at <= 440 V AC AC-3 for power circuit,18 A (at <55 °C) at <= 440 V AC AC-3e for power circuit,32 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| Power Consumption | in VA |
| Operating Period(Mech) | 10000000 cycles |
| Operating Period(Elec) | 300000 cycles AC-1,1200000 cycles AC-3 |
