Description

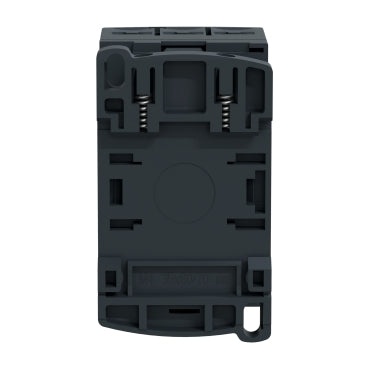

xThis TeSys D contactor features 3 NO poles and is rated for 9 A at 440 V AC-3, making it suitable for motor control applications. It offers high reliability with a mechanical durability of 15 million cycles, ensuring long-lasting performance in demanding industrial settings.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CB / CCC / CSA / CSA C22.2 No 14 / DNV / EN 60947-4-1 / EN 60947-5-1 / GOST / GL / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / LROS (Lloyds register of shipping) / RINA / UL / UL 508 / UKCA |
| Temperature: Operating | -40°C to 60°C / 60°C to 70°C with derating |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 320g |
| Packaging size / unit | 1 pc(s) |
| Connection Style | 3 Poles / 1 NO + 1 NC |
| Connection Type | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without\ncable end / Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with\ncable end / Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 9 A at <= 440 VAC / 25 A at <= 440 VAC / 9 A at <= 440 VAC |
| Power Consumption | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) / 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Operating Period | 15 Mcycles (Mechanical) / 0.6 Mcycles 25 A AC-1 at Ue <= 440 V\n2 Mcycles 9 A AC-3 at Ue <= 440 V\n2 Mcycles 9 A AC-3e at Ue <= 440 V (Electrical) |
