Description

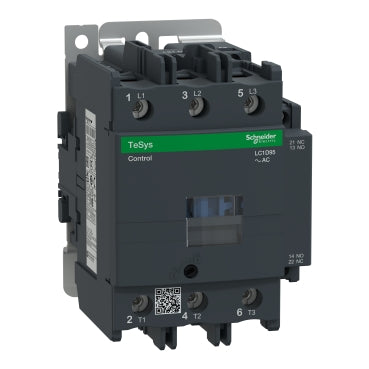

xThis TeSys D contactor offers 3-pole operation, supporting motor control and resistive load applications. It has a rated current of 95 A at 440 V AC and operates with a 400 V AC coil. Its robust design ensures reliable performance in demanding environments.
Specifications
x| IP Rating | IP20 |
| Part Depth (mm) | 130mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 127mm |
| Weight (g) | 1610.0g |
| Connection Type | Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: flexible without cable end / Power circuit: connector 2 4 - 25 mm² - cable stiffness: flexible without cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: flexible with cable end / Power circuit: connector 2 4 - 16 mm² - cable stiffness: flexible with cable end / Power circuit: connector 1 4 - 50 mm² - cable stiffness: solid without cable end / Power circuit: connector 2 4 - 25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 95 - 125 A |
| Operating Period | 4 Mcycles (mechanical) / 1.2 Mcycles 95 A AC-3 / 1.3 Mcycles 125 A AC-1 / 1.2 Mcycles 95 A AC-3e (electrical) |
| Warranty | 18 Months |
