Description

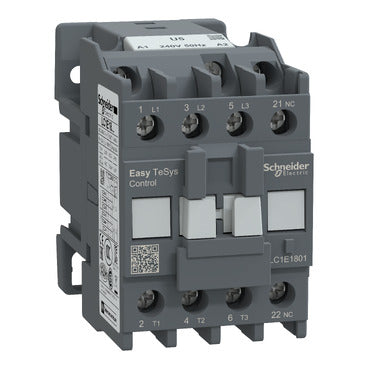

xThis EasyPact TVS contactor supports motor control and resistive load operations. It is rated for an operational current of 25 A at AC-3 and features a control circuit voltage of 240 V AC, suitable for versatile industrial applications.
Specifications
x| IP Rating | IP2X |
| Compliance/Certifications | IEC 60947-5-1 / IEC 60947-4-1 / IEC 60947-1 |
| Part Depth (mm) | 80mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 74mm |
| Weight (g) | 300g |
| Packaging size / unit | 1 / 36 / 576 pc(s) |
| Tightening Torque | 1.2 Nm |
| Connection Type | Power circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 1 1.5 - 6 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 2 1.5 - 6 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | DIN rail / Plate |
| Current Rating / Rated Current | 18 - 32 A |
| Operating Period | 10000000 cycles (mechanical) / 300000 cycles AC-1 / 1200000 cycles AC-3 (electrical) |
| Warranty | 18 Months |
