Description

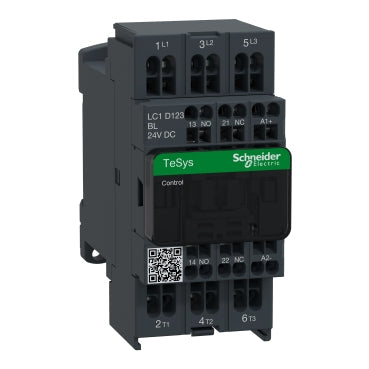

xThis is a 3-pole contactor with a 24VDC coil and 3NO contacts, rated for a power circuit voltage up to 690V AC and current ratings of 16A (AC-1) or 12A (AC-3/AC-3e) at up to 440V AC. It is used for switching motor loads and other electrical circuits within control panels. Connections are made via spring terminals for both power and control circuits, and the unit has an IP20 rating on the front face.
Key specifications
- IP rating: IP20 front face conforming to IEC 60529
Specifications
x| IP Rating / Detailed | IP20 front face conforming to IEC 60529 |
| Compliance/Certifications | CSA C22.2 No 14,EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,UL 60947-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ,CSA C22.2 No 60947-4-1 |
| Part Depth (mm) | 95mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 99mm |
| Weight (g) | 485.0g |
| Connection Type | Power circuit: spring terminals 1 2.5 mm² - cable stiffness: flexible without cable end,Power circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end,Control circuit: spring terminals 1 2.5 mm² - cable stiffness: flexible without cable end,Control circuit: spring terminals 2 2.5 mm² - cable stiffness: flexible without cable end |
| Rated Operating Voltage | Power circuit: <= 690 V AC 25...400 Hz |
| Current Rating | 16 A (at <60 °C) at <= 440 V AC AC-1 for power circuit,12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Power Consumption | in W |
| Operating Period(Mech) | 30 Mcycles |
| Operating Period(Elec) | 2 Mcycles 12 A AC-3 at Ue <= 440 V,0.8 Mcycles 25 A AC-1 at Ue <= 440 V,2 Mcycles 12 A AC-3e at Ue <= 440 V |
