Description

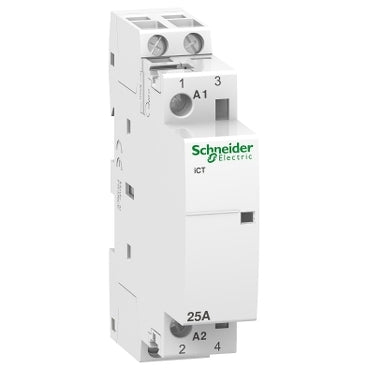

xThis Acti9 iCT contactor offers 2 NO poles with a rated operational current of 25 A for AC-7A applications and 8.5 A for AC-7B. It is ideal for motor, heating, and lighting control in residential and small commercial environments.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 / IP40 (modular enclosure) conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | IEC/EN 61095 |
| Temperature: Operating | -5°C to 60°C |
| Part Depth (mm) | 68.5mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 81mm |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | Control circuit: 0.8 Nm Power circuit: 0.8 Nm |
| Connection Style | 2 NO |
| Connection Type | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid / Power circuit: tunnel type terminals1 cable(s) 1…4 mm² flexible / Power circuit: tunnel type terminals1 cable(s) 1.5…6 mm² rigid / Control circuit: tunnel type terminals1 cable(s) 1.5…2.5 mm² rigid / Control circuit: tunnel type terminals2 cable(s) 1.5…2.5 mm² flexible |
| Max Frequency | 50 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 250 VAC |
| Mounting Type | Clip-on 35 mm symmetrical DIN rail |
| Current Rating / Rated Current | 25 A / 8.5 A |
| Power Consumption | 2.7 VA |
| Operating Period | 1000000 cycles (Mechanical) / 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A\n30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B\n30000 cycles IEC/EN 61095 50 Hz AC-7C\n100000 cycles EN/IEC 60947-4-1 50 Hz AC-1\n30000 cycles EN/IEC 60947-4-1 50 Hz AC-3\n30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a\n30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b (Electrical) |
| Warranty | 18 Months |
| Colour | White |
