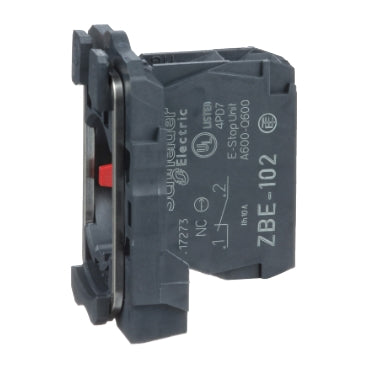

Schneider Contact block with body/fixing collar, 1NC Part number ZB5AZ102

This NC contact block with fixing collar offers a slow-break contact mechanism, making it ideal for standard industrial control applications in the Harmony XB5 range.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This NC contact block with fixing collar offers a slow-break contact mechanism, making it ideal for standard industrial control applications in the Harmony XB5 range.
Specifications
Specifications
x
IP RatingIP20 conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsBV / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / JIS C8201-1 CSA / JIS C8201-5-1 / LROS (Lloyds Register of Shipping) / UL / UL 508
Temperature: Operating-40°C to 70 °C
Part Depth (mm)32mm
Part Width (mm)30mm
Part Height (mm)42mm
Weight (g)21g
Tightening Torque0.8 to 1.2 N.m
Material: ProductSilver alloy (Ag/Ni)
Screw TypeCross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
Connection Style1 NC
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
Operating Period10000000 cycles
Warranty18 Months
