Description

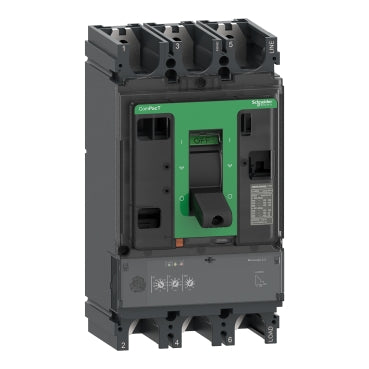

xThis circuit breaker from the ComPacT NSX630N range supports up to 630 A with a MicroLogic 2.3 trip unit. It provides a breaking capacity of 50 kA at 415 V AC, making it ideal for standard distribution applications.
Specifications
x| IP Rating | IP40 |
| Compliance/Certifications | EN/IEC 60947-2 |
| Temperature: Operating | -25°C to 70 °C |
| Part Depth (mm) | 110mm |
| Part Width (mm) | 140mm |
| Part Height (mm) | 255mm |
| Weight (g) | 6200g |
| Packaging size / unit | 1 / 2 pc(s) |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 VAC 50/60 Hz |
| Current Rating / Rated Current | 630 A |
| Operating Period | 15000 cycles (mechanical) / 8000 cycles at 440 V In/2 / 4000 cycles at 440 V In / 6000 cycles at 690 V In/2 / 2000 cycles at 690 V In (electrical) |
