Description

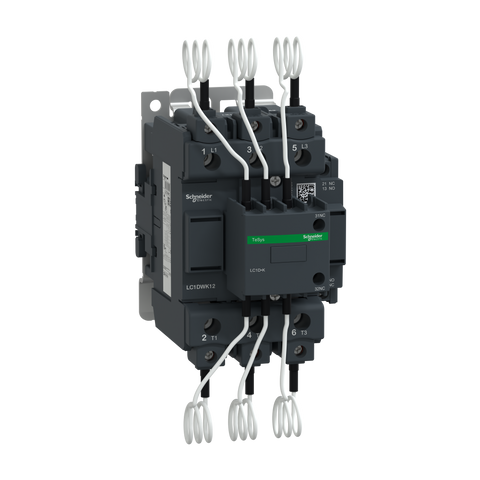

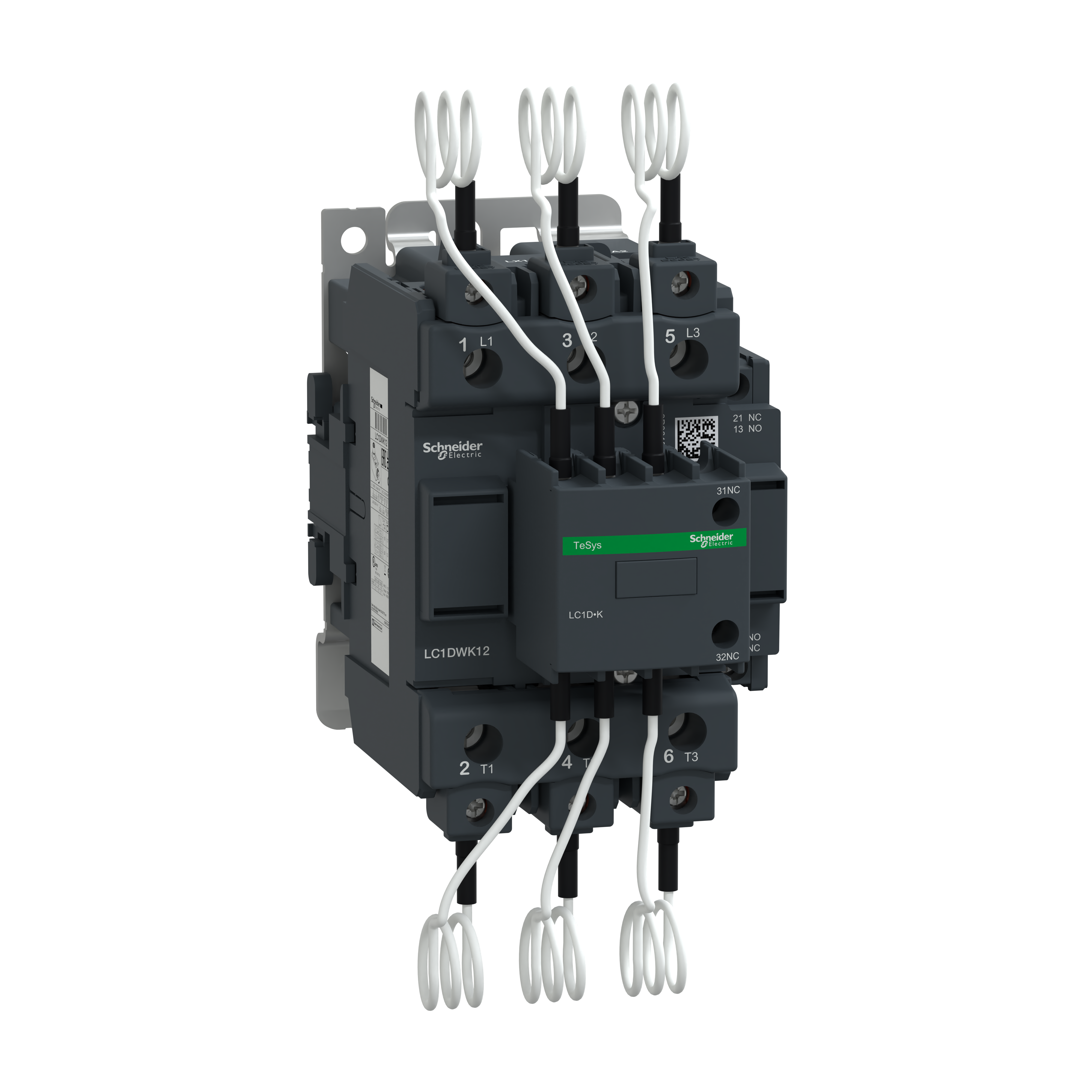

xThis capacitor duty contactor from Schneider Electric is designed for power factor correction. Rated for 63 kVAR at 400 V/50 Hz, it is ideal for managing reactive power in electrical systems. It features a 230 V AC control coil and can be mounted on a DIN rail or plate.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA C22.2 No 60947-4-1 / EN/IEC 60947-1 / EN/IEC 60947-4-1 / IECEE CB Scheme / UL 60947-4-1 / UL CSA / UKCA |
| Temperature: Operating | -5°C to 60°C |
| Part Depth (mm) | 154mm |
| Part Width (mm) | 85mm |
| Part Height (mm) | 180mm |
| Weight (g) | 1.65g |
| Packaging size / unit | pc(s) |
| Tightening Torque | 1.7 - 12 Nm |
| Connection Style | 3 Poles |
| Connection Type | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: connector 1 4…50 mm² - cable stiffness: solid Power circuit: connector 2 4…25 mm² - cable stiffness: solid Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end |
| Mounting Type | DIN rail plate |
| Operating Period | Electrical Durability 300000 cycles at Ue 400 V / 200000 cycles at Ue 690 V |
